Tube Amp Power Supply PCB With Serial Caps And Balancing Resistors

Description

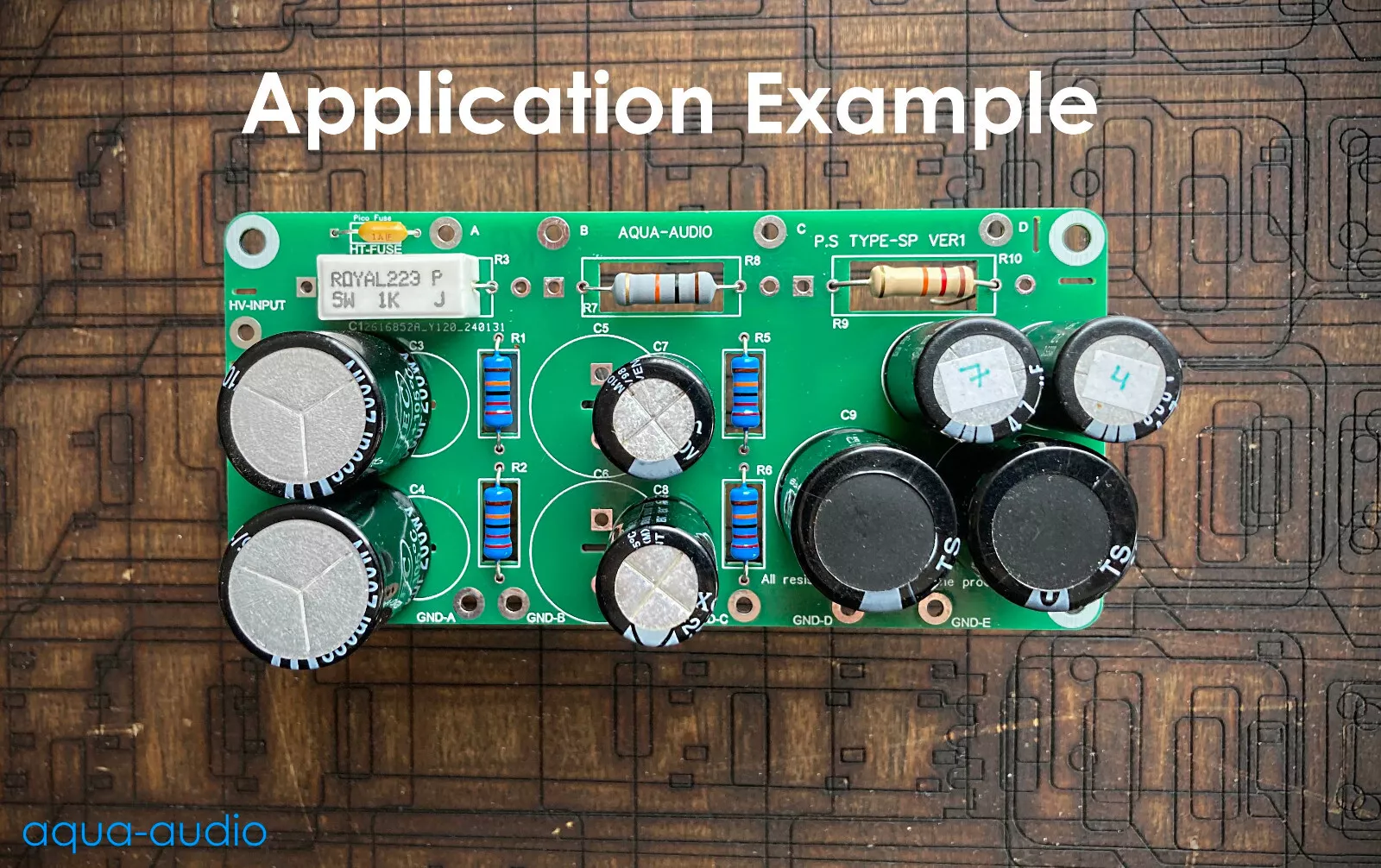

I’ve designed this board to support many design needs and various hardware.

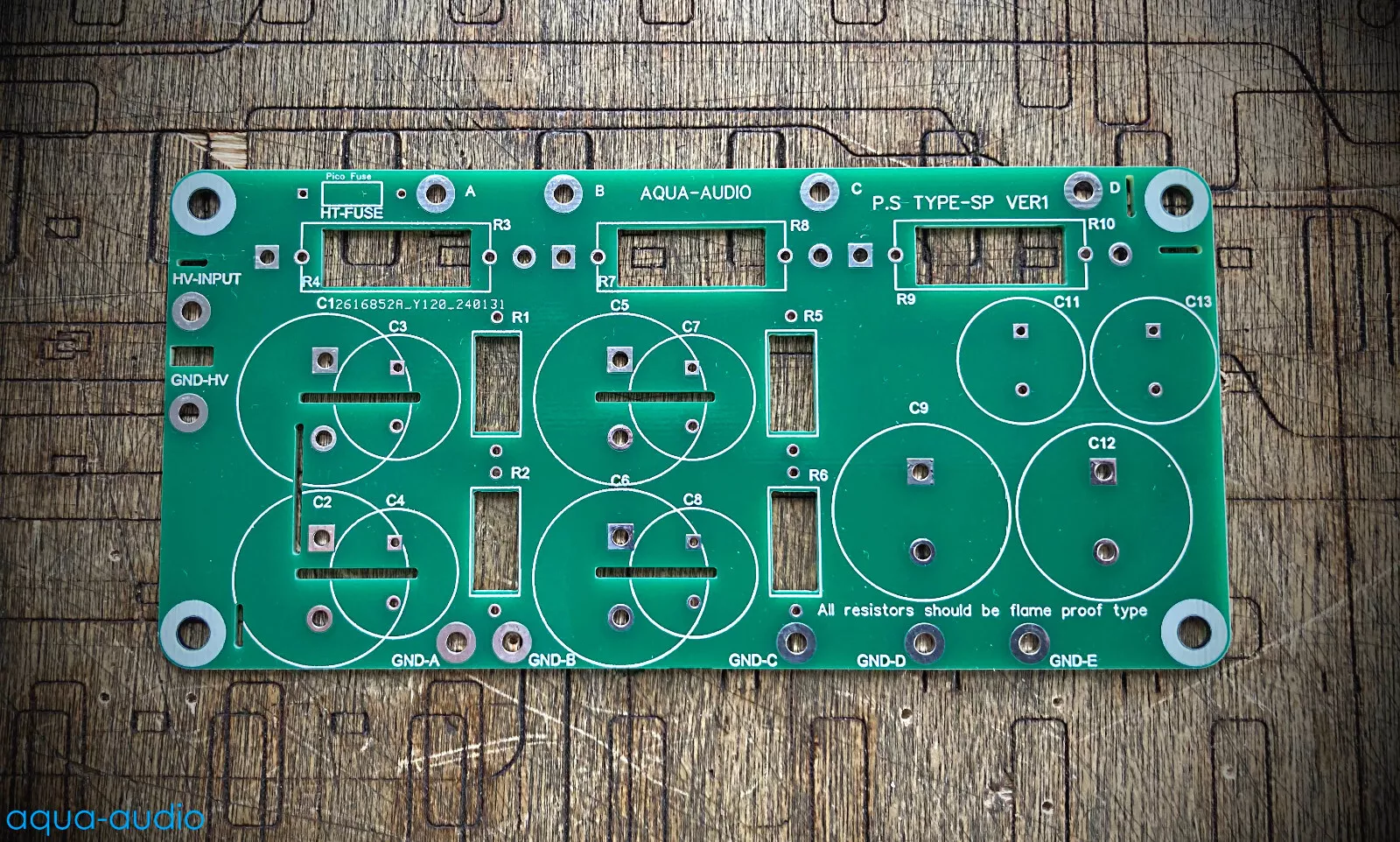

Features:

• Can accommodate Up to 6 SNAP IN or TH capacitors (or a mix of both)
• The serial caps have balancing resistors to even the voltage between them
• Under each resistors there are venting holes in the PCB, for better heat dissipation
• An optional HT pico fuse placement (if not needed, it can be jumpered)
• Multiple ground connections
• Thick and robust PCB (1.6mm)
• Air gaps for better creepage and clearance performance
• 4 mounting holes

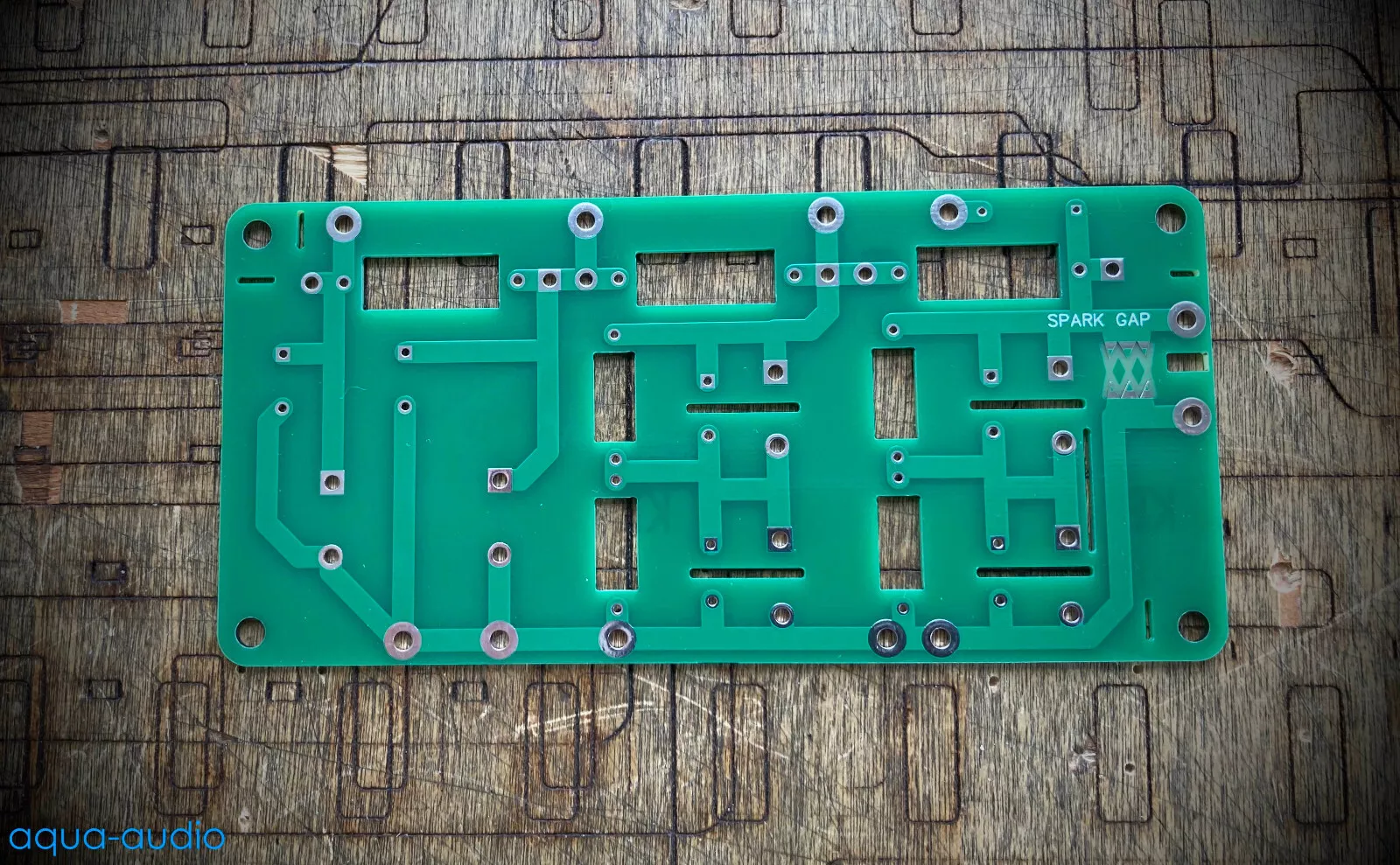

• There is a spark-gap at the HV input

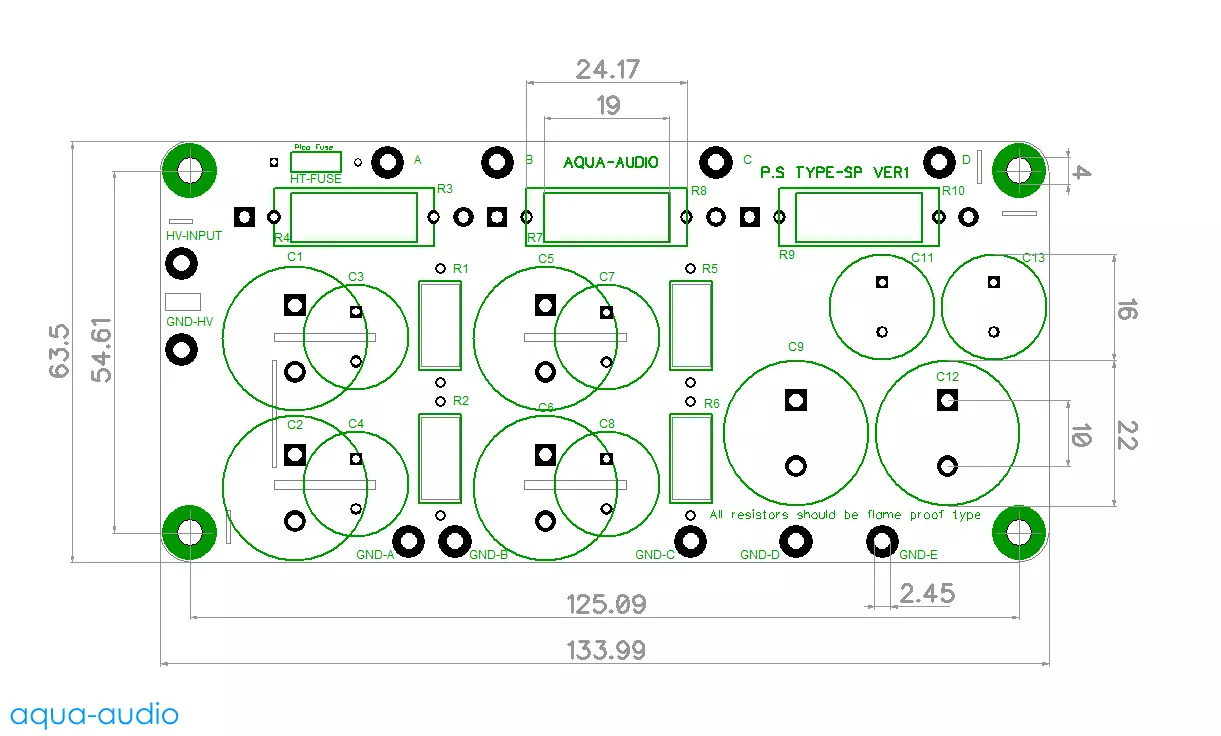

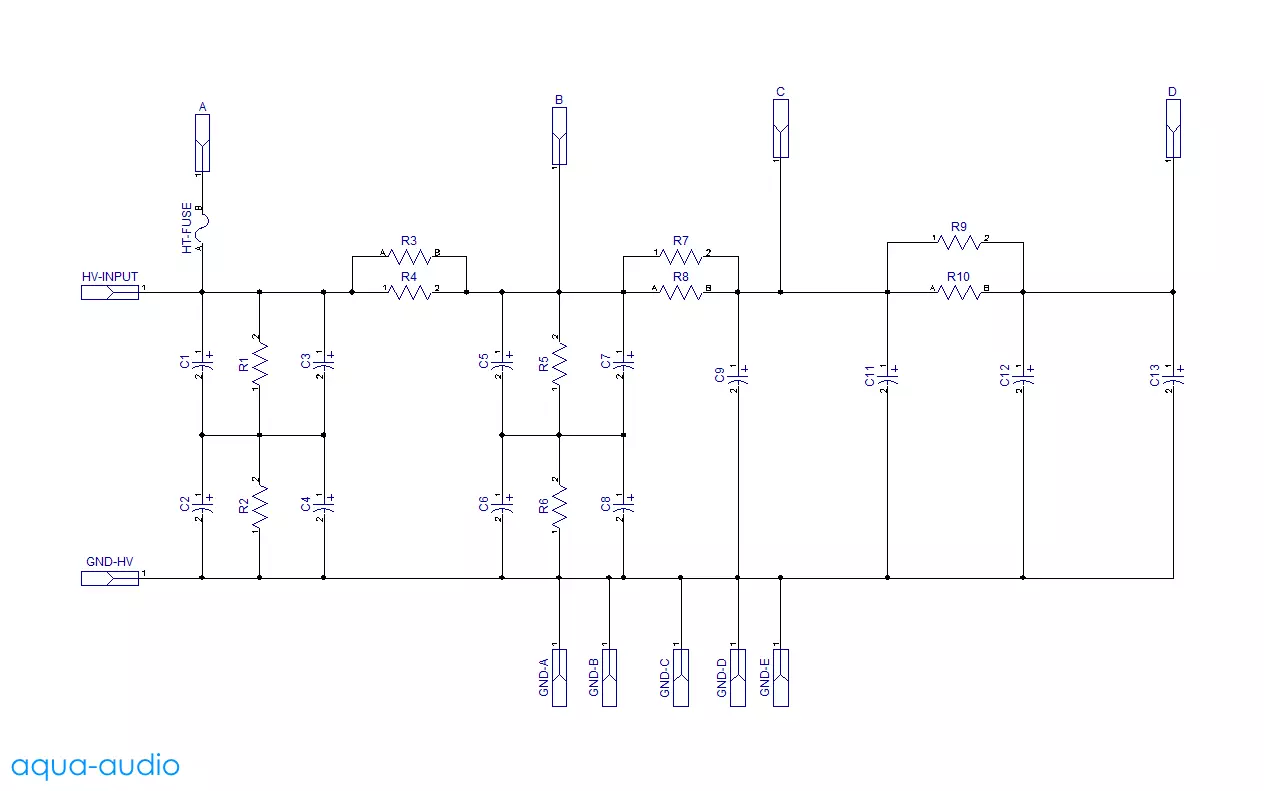

* Please see the pictures for dimensions, connection options and schematics

** The listing is only for the PCB ONLY!

All AQUA-AUDIO products are hand made.
