10pcs Multi Section Capacitor Mounting Plate And PCB 38mm Spacing Mounting Hole
$58.00
5 in stock
Shipping rates:
To Israel: $10.00
To the rest of the world: $23.69
Description
Multi sectional caps can be very expensive, hard to find and in many cases – will not have the necessary capacitance and voltage values.
With this PCB – that is also a mounting plate, you can make your own multi sectional capacitor, and choose the right capacitance and voltage values.
Features:
- Can accommodate Up to 3 capacitors
- Two pin spacing options: 5mm and 7.6mm for capacitors with different footprints
- Common ground connection
- Thick and robust PCB (1.6mm)
- Air gaps for better creepage and clearance performance
- 38MM Spacing Mounting Holes

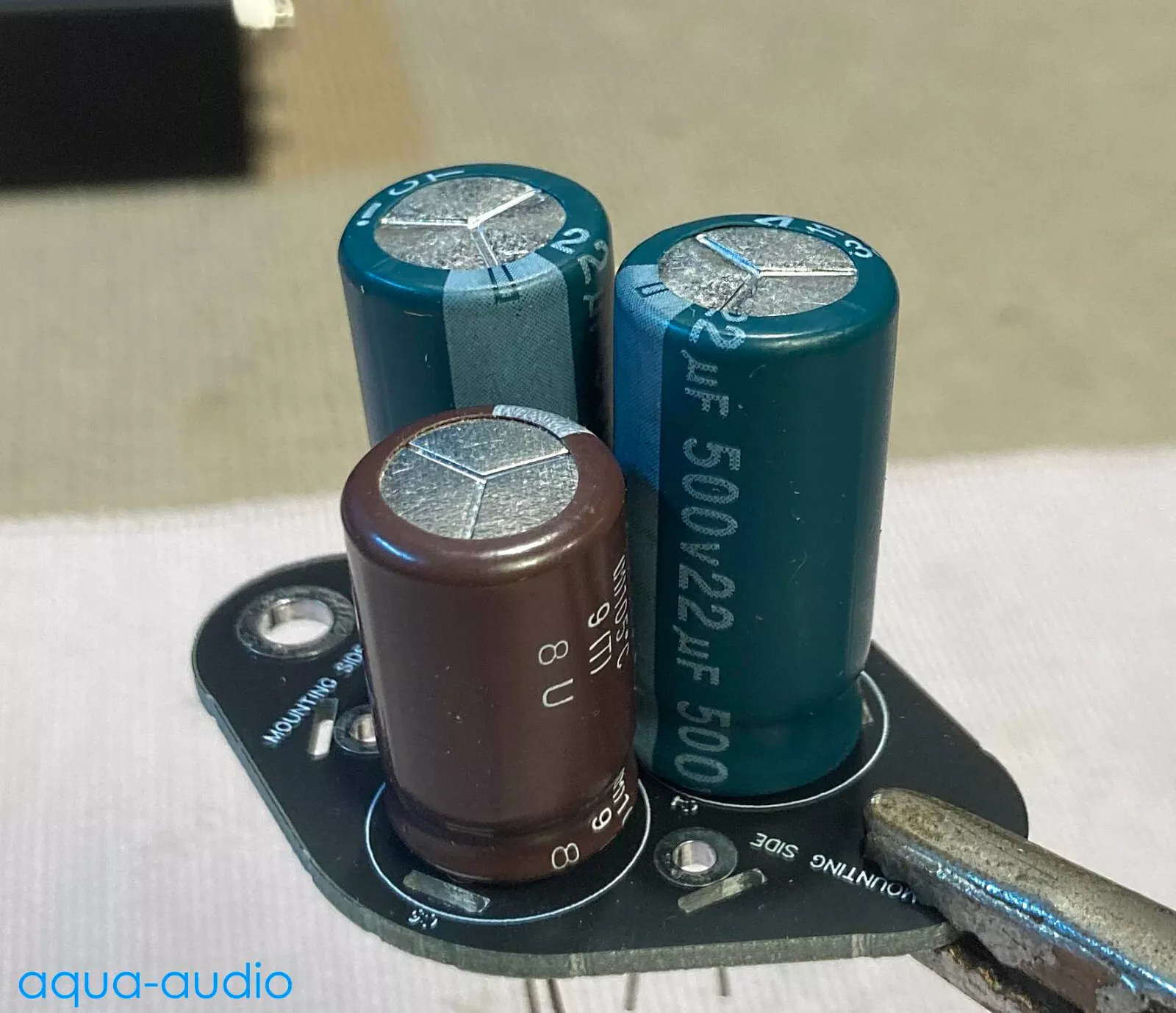

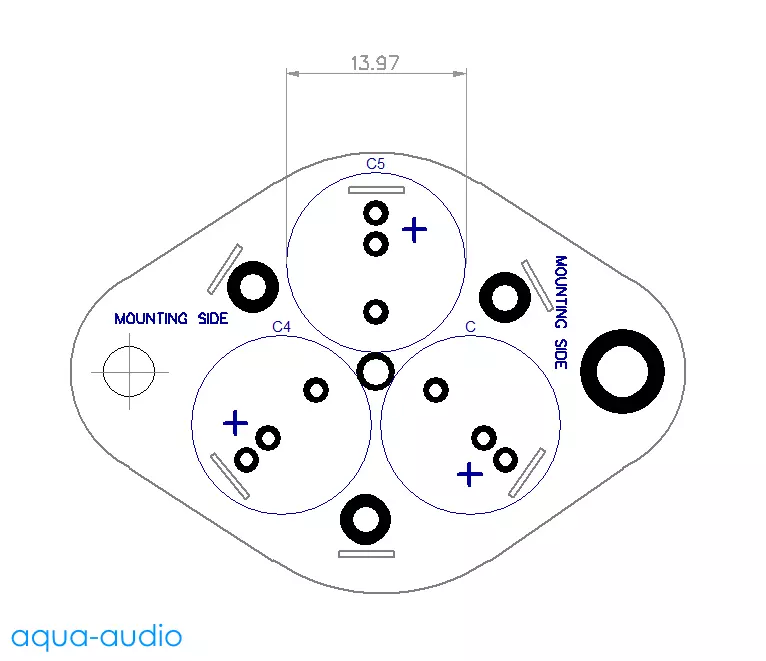

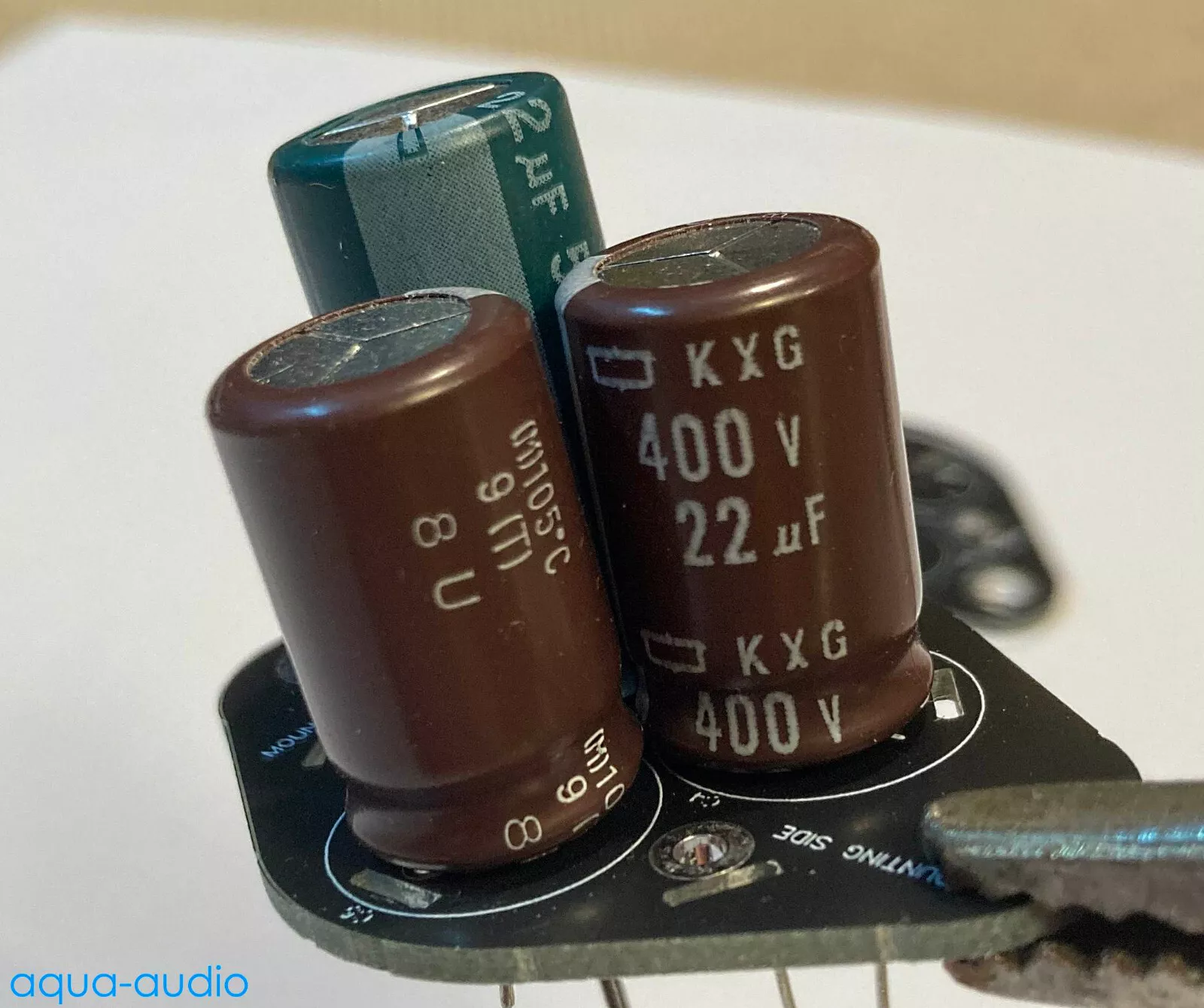

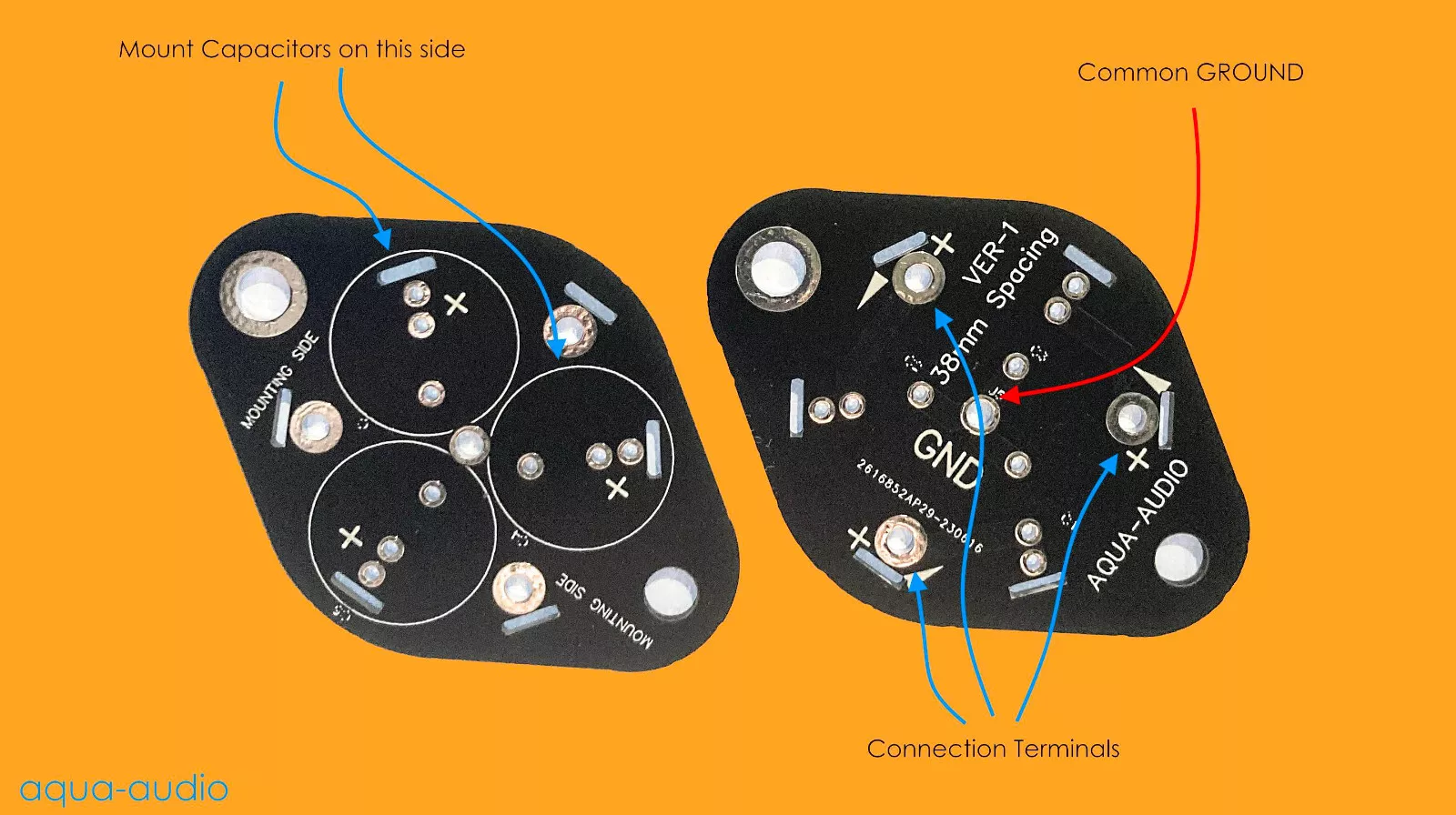

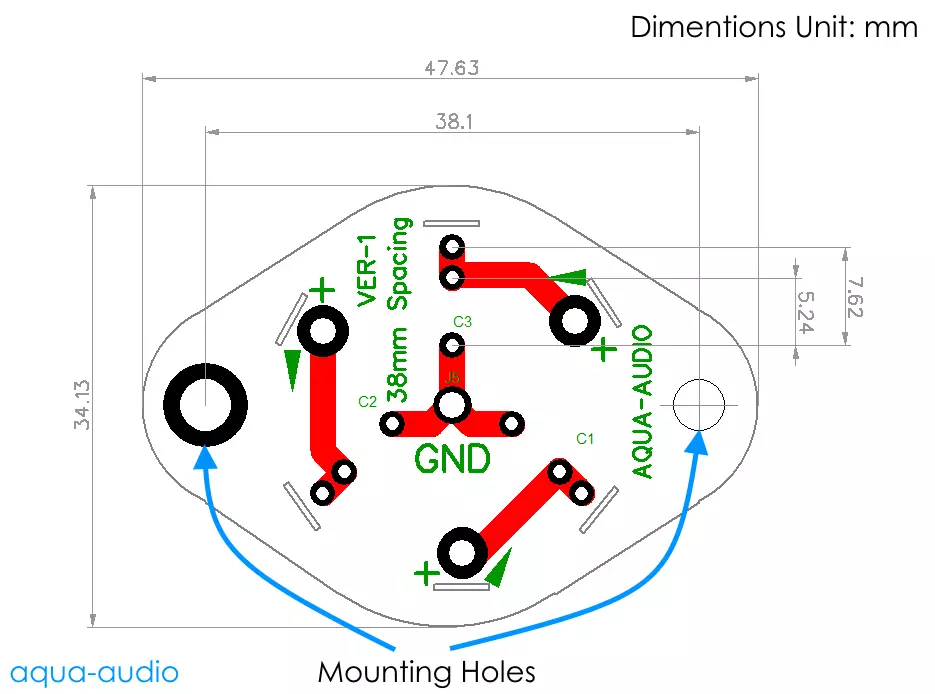

* Please see the pictures for dimensions and connection options
** The listing is only for the plate, the caps in the pictures are not included!
All AQUA-AUDIO products are hand made.
