Eyelet board / Turret board Versatile PCB Replacement For Tube Gear

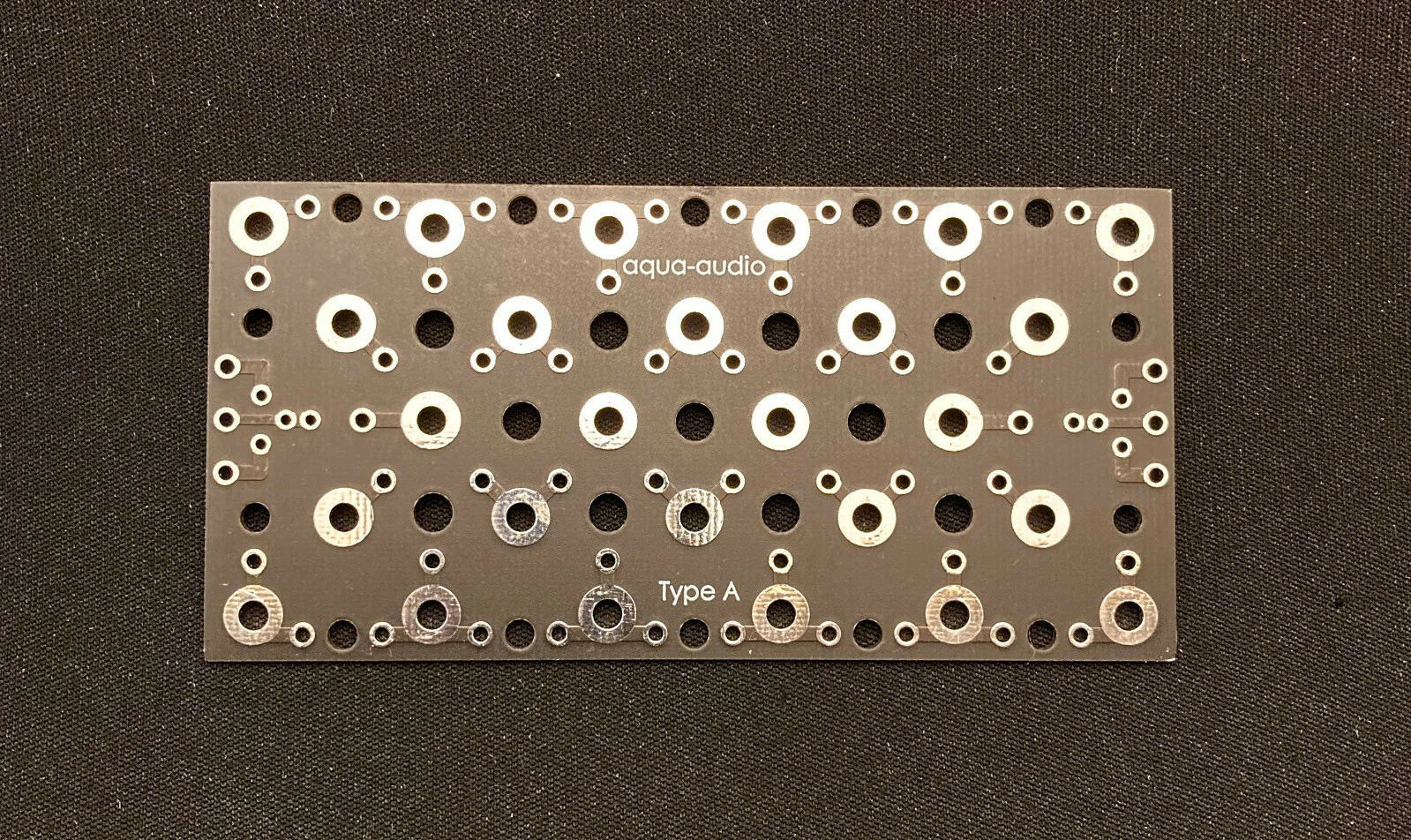

Description

I’ve originally designed these boards for my Tube Amps projects and mods. Over time, people showed interest in them – since they found them very versatile and easy to work on.
The options are endless, you can build a complete tube amp, pre amp, Fender style power supply board and even guitar pedals.

It is also very helpful as a prototype development board – that later on can be converted to a real Eyelet board / Turret board.

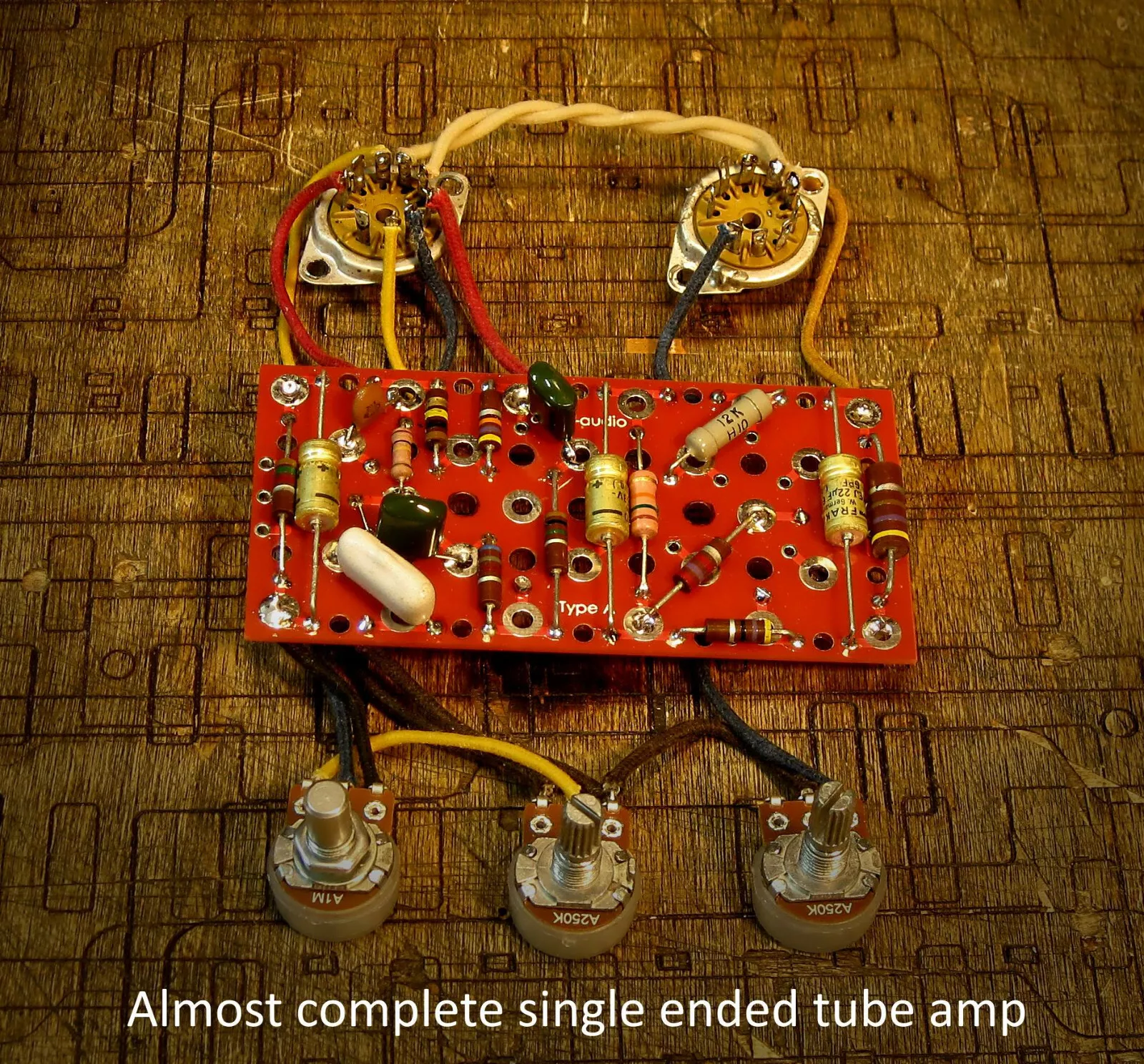

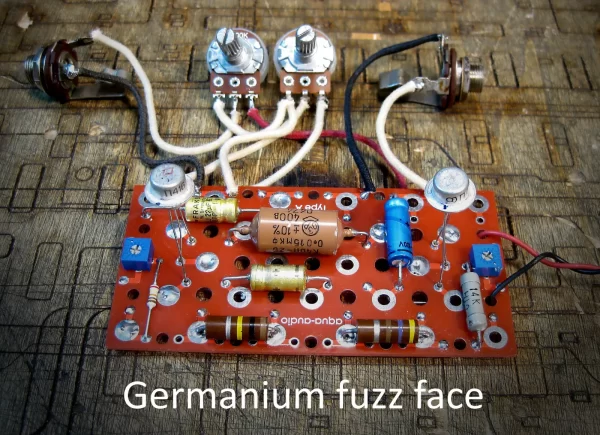

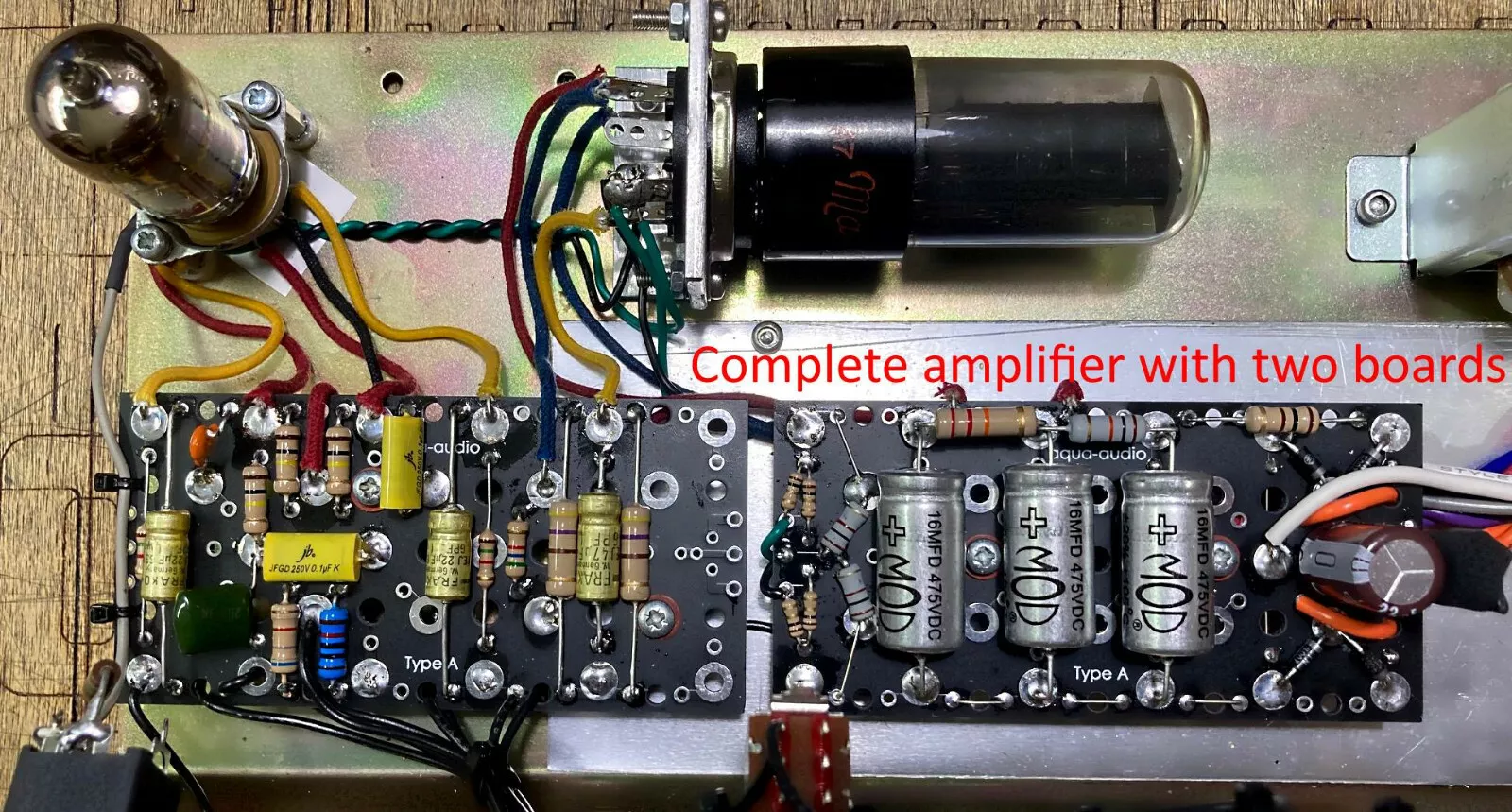

I’ve added few pictures of mounting a build examples, I will add more in the future.

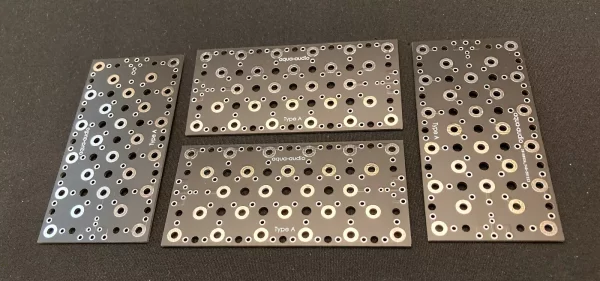

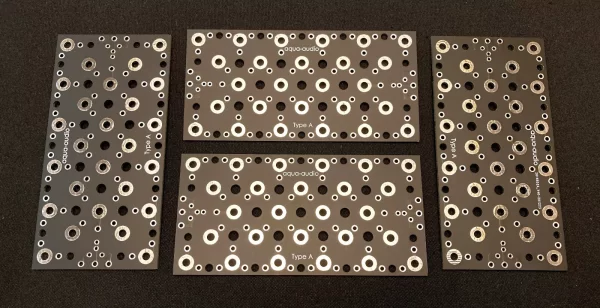

Please note: only black boards are available

Features:

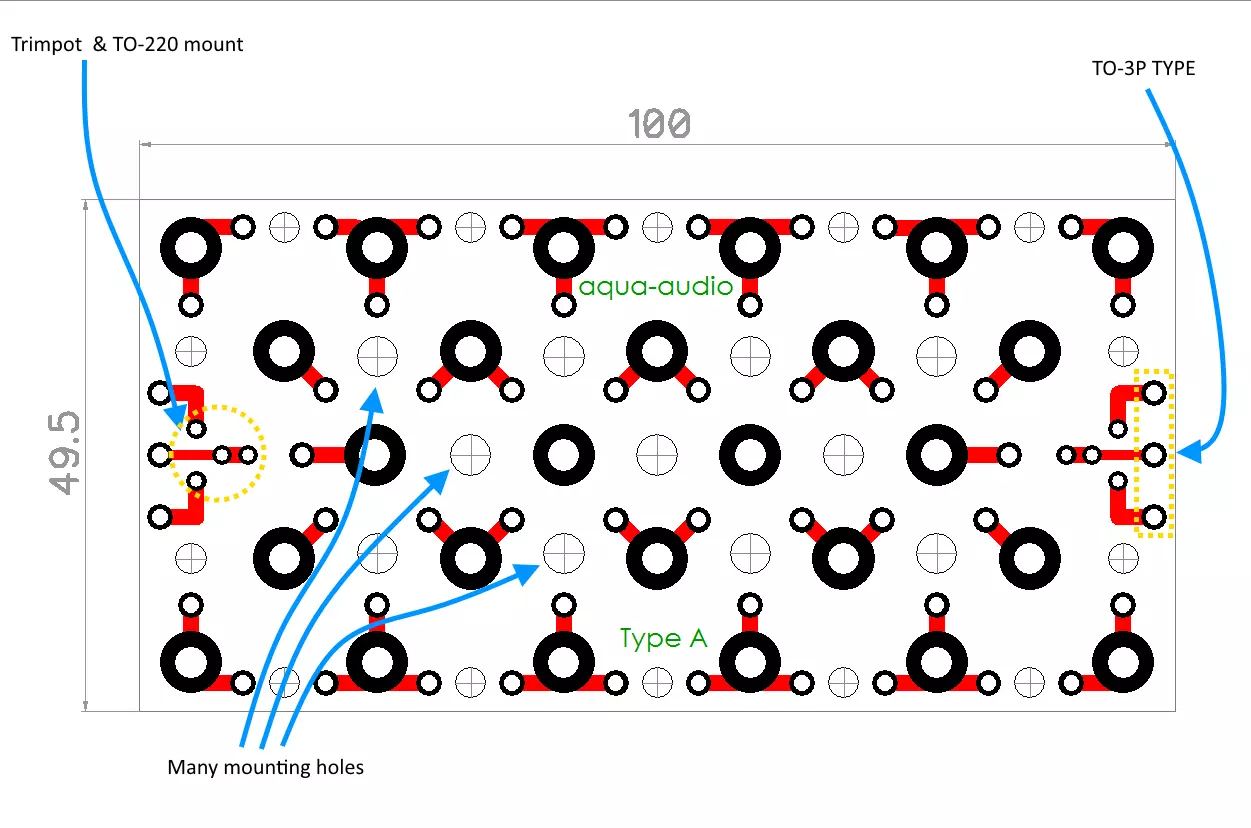

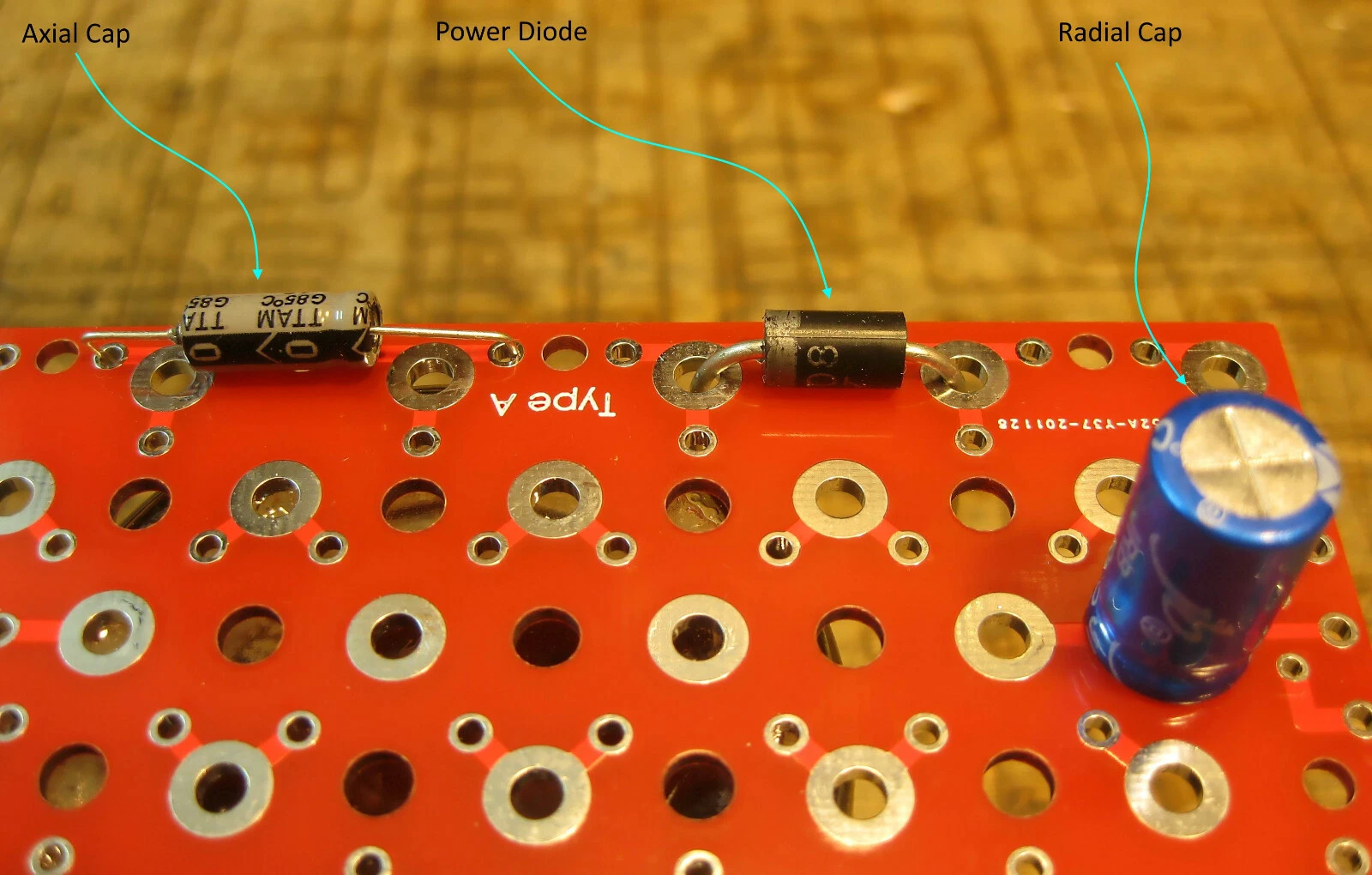

• Many large and small holes for various types of components and wires.
• Almost every large hole has small hols connected to them for easy wire attachment and link to other complements.

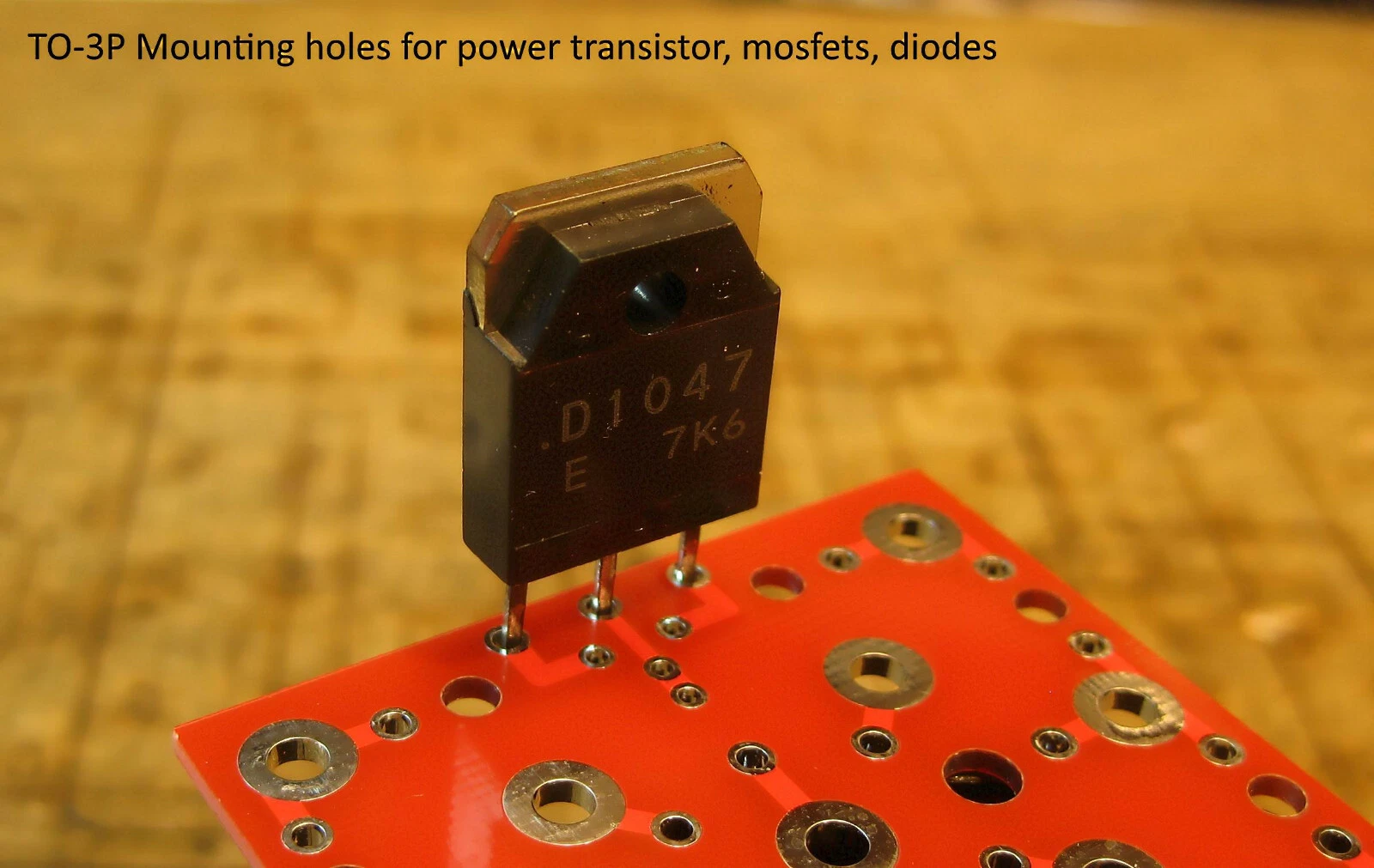

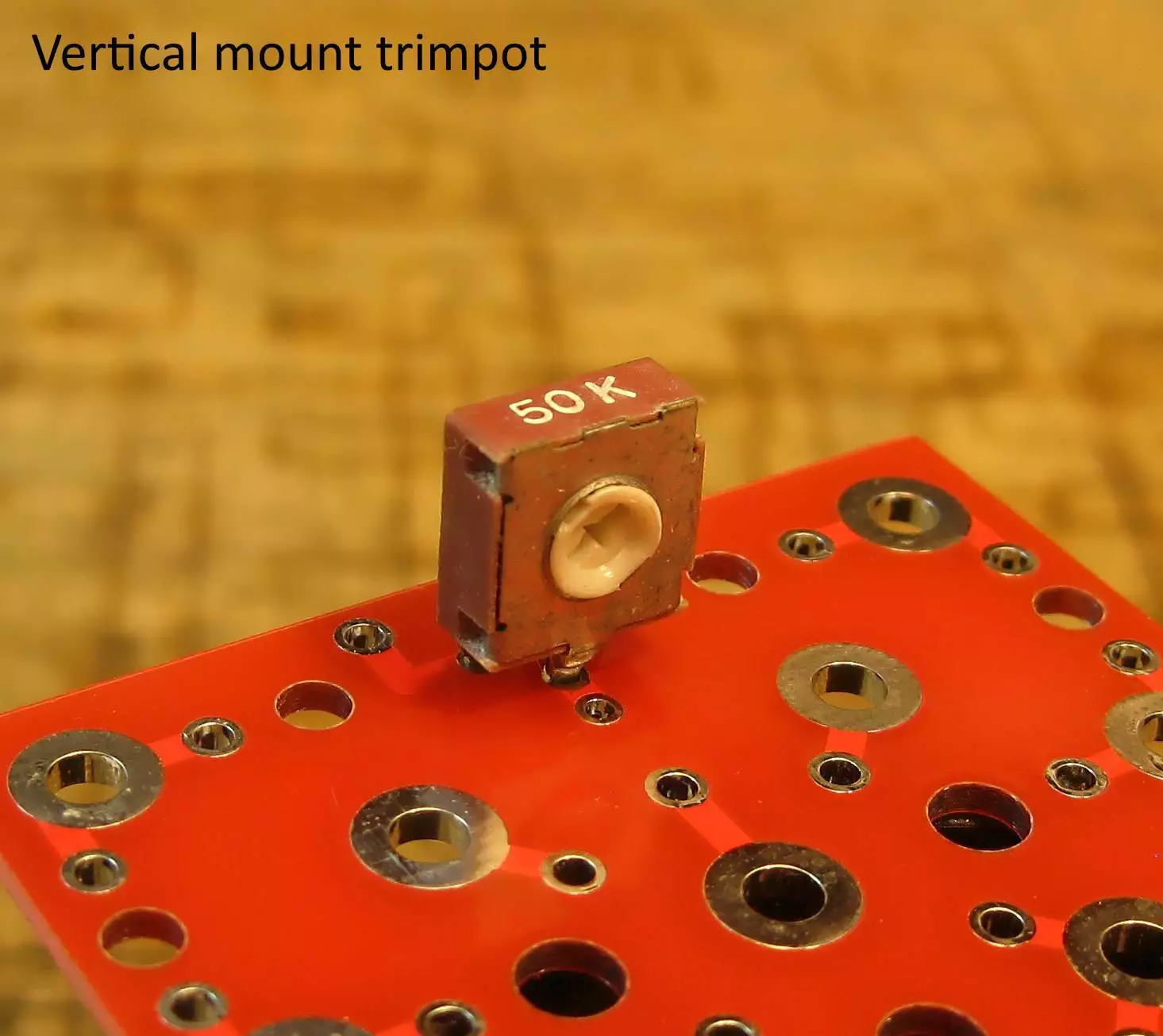

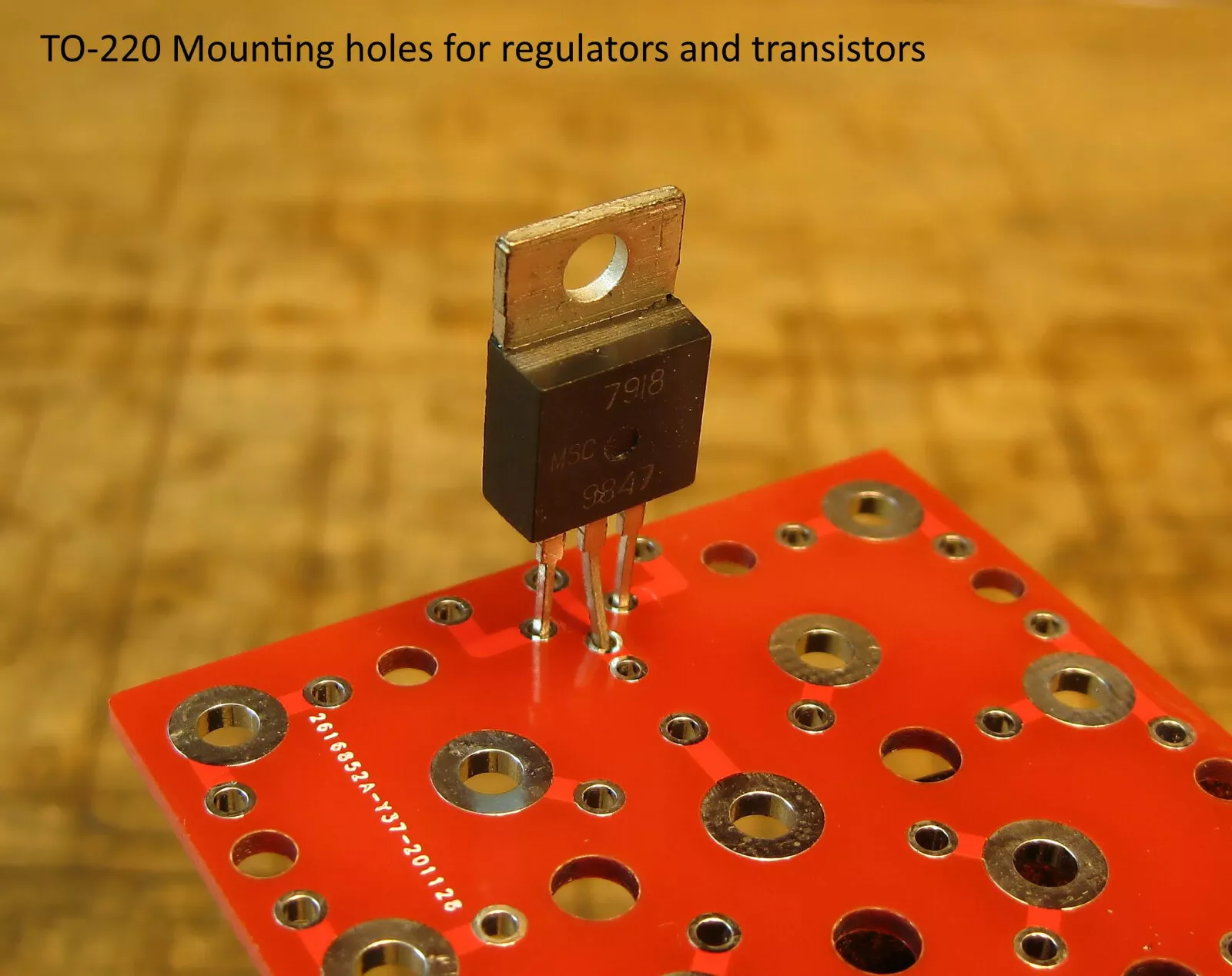

• Built in footprints for adding trim pots (for Marshall style bias supply), regulators, transistors and many other components.
• Many mounting holes provide various mounting options and act as natural thermal Convection holes.
• Small holes near the edges for holding wires.
• Almost all the mounting options (except the trim pots), have a sufficient spacing for more then 500VAC/DC
• Few boards can be used inside an enclosure, this can help in more versatile builds, shorter wires and better use of the space.
• All the holes are double sided, this allows making connections under the board – for a neat and clean build.


Dimensions:

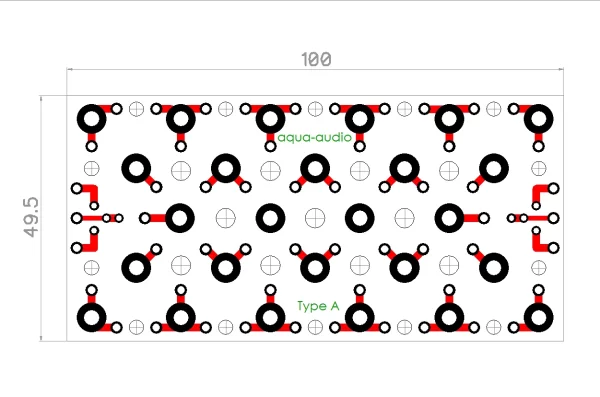

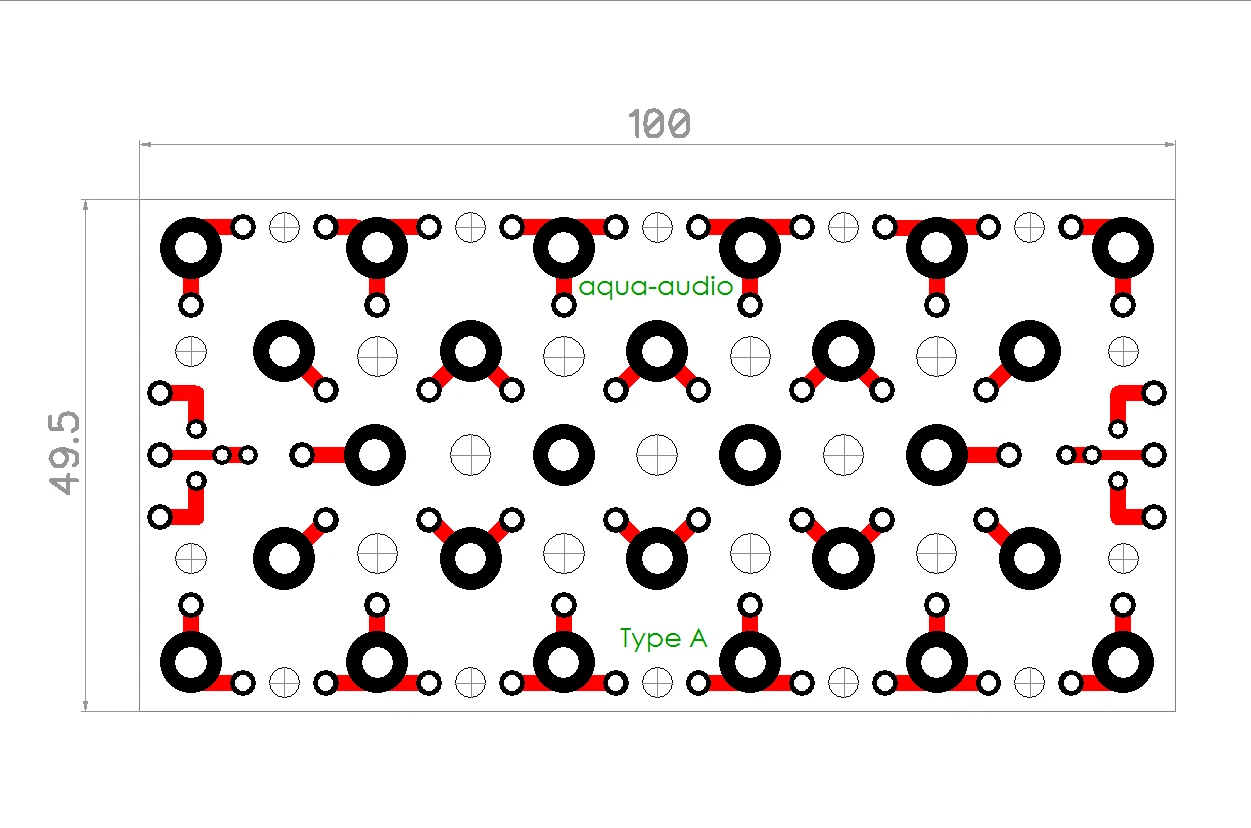

Length: 10cm
Width: 4.95cm

All AQUA-AUDIO products are hand made.
