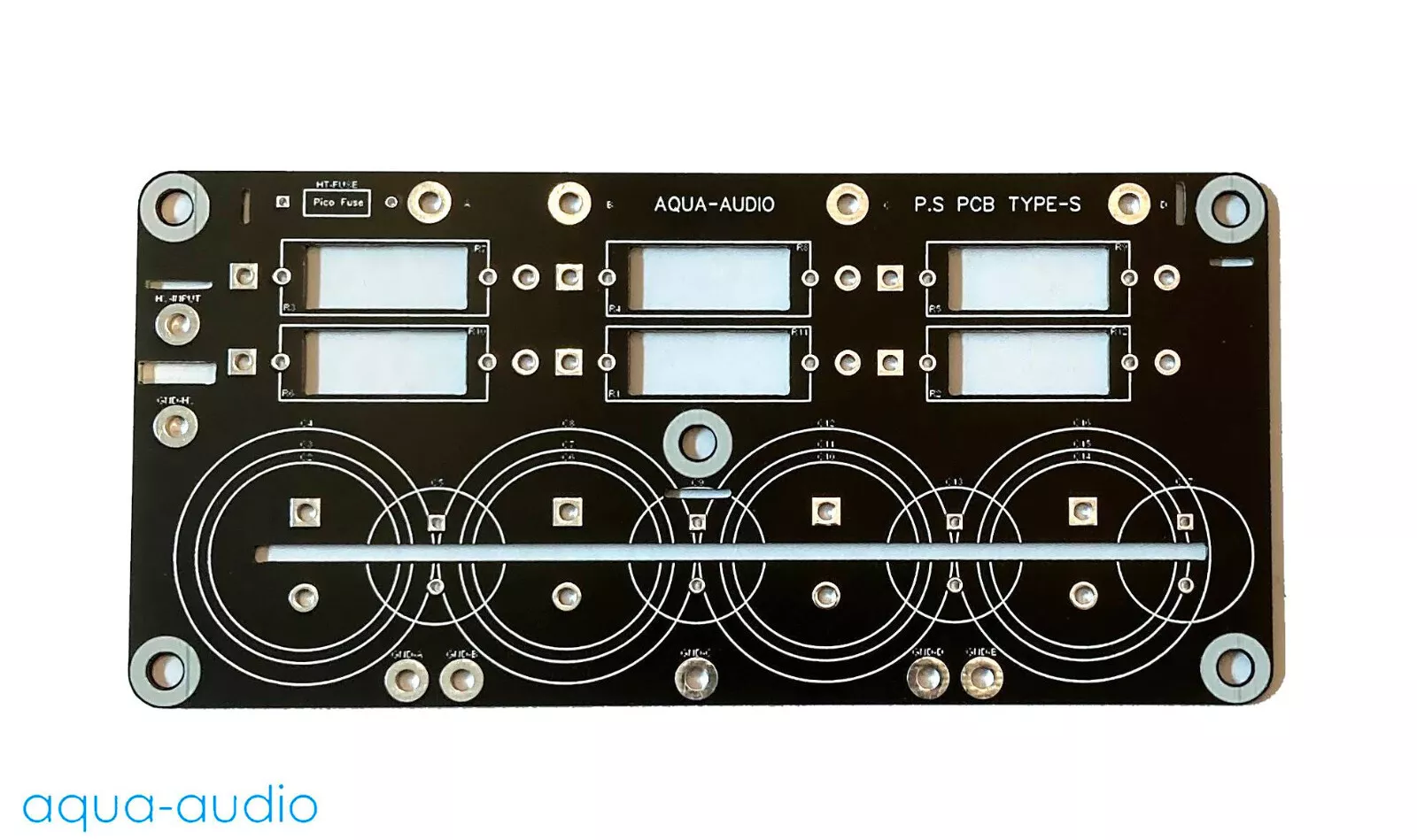

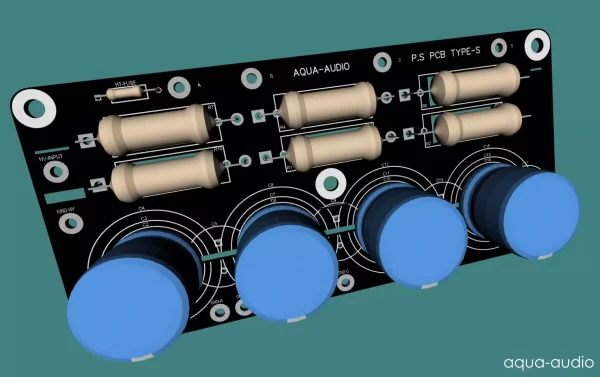

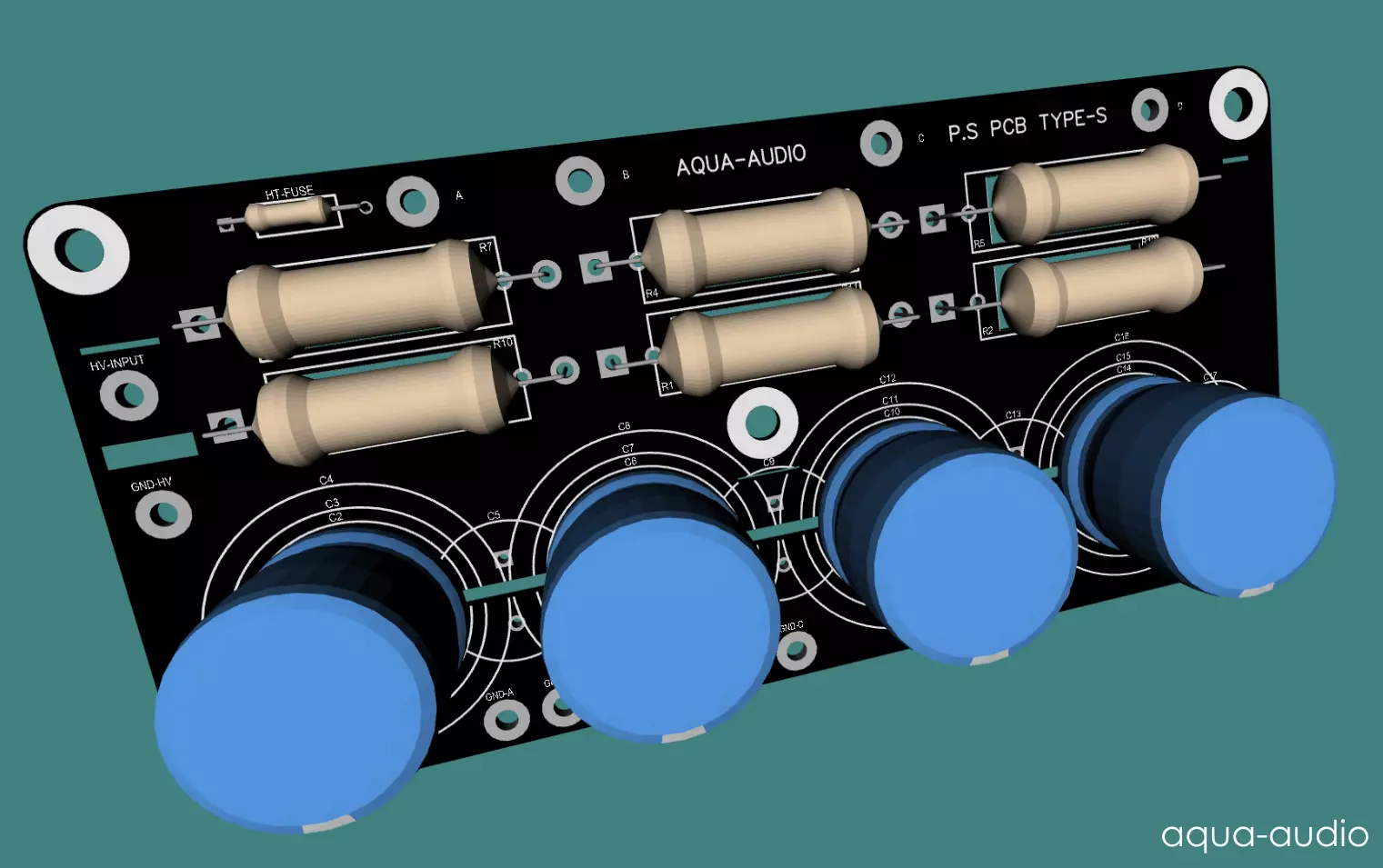

Tube Amp Power Supply PCB

Description

I’ve designed this board to support many design needs and various hardware.

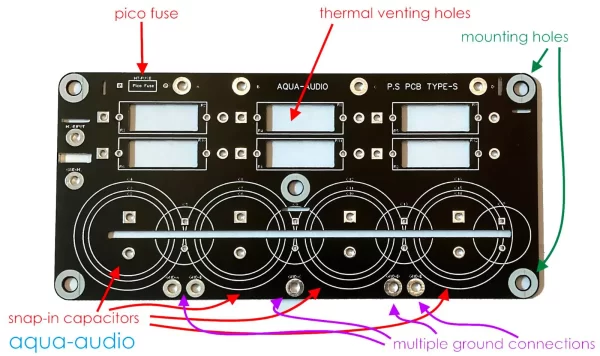

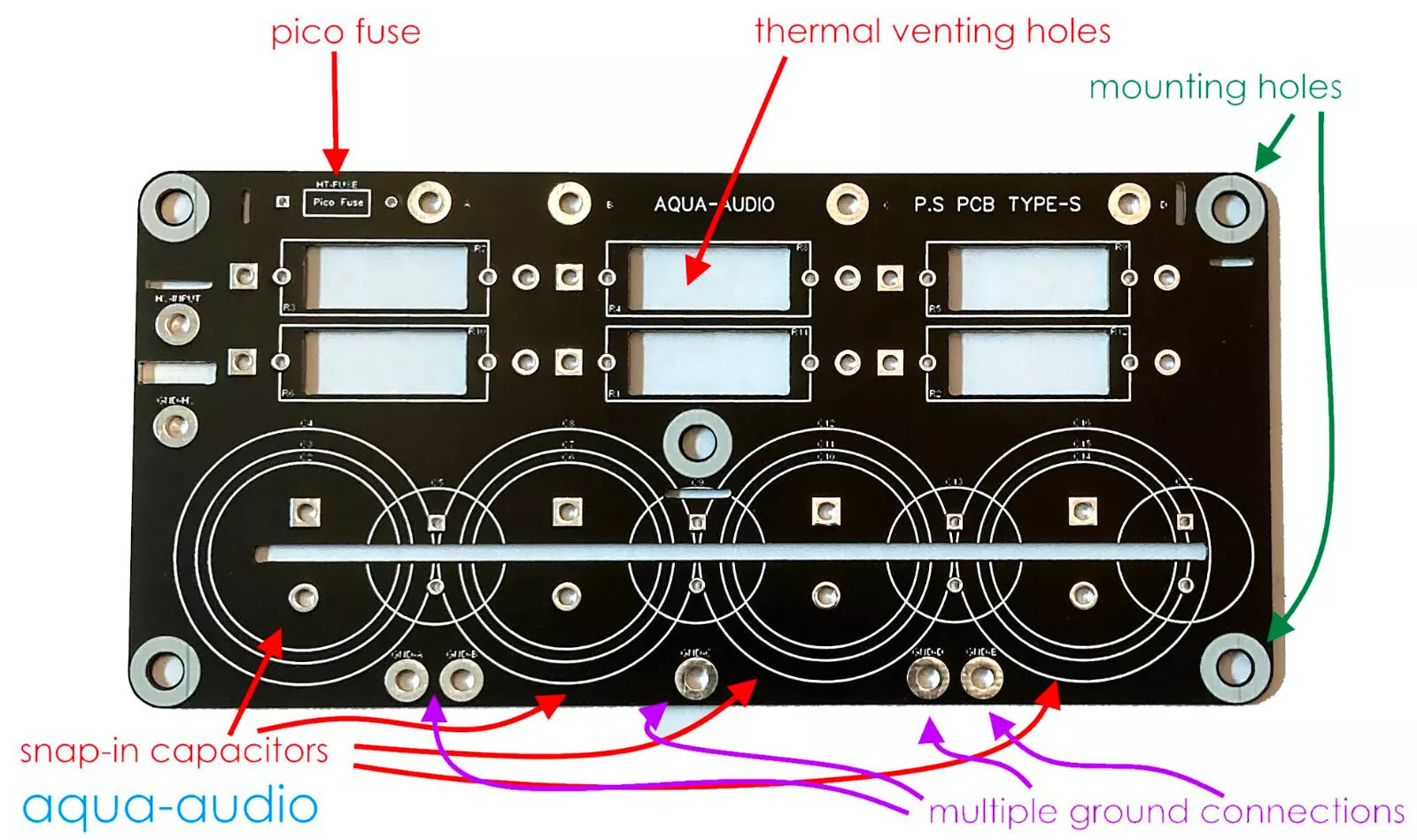

Features:

• Can accommodate Up to 4 SNAP IN or TH capacitors (or a mix of both)
• The three drop resistors are divided into 2 parallel resistors – for higher flexibility (values) and heat dissipation.
• Under each resistors there are venting holes in the PCB, for better heat dissipation
• An optional HT pico fuse placement (if not needed, it can be jumpered)
• Multiple ground connections
• Thick and robust PCB (1.6mm)
• Air gaps for better creepage and clearance performance
• 5 mounting holes

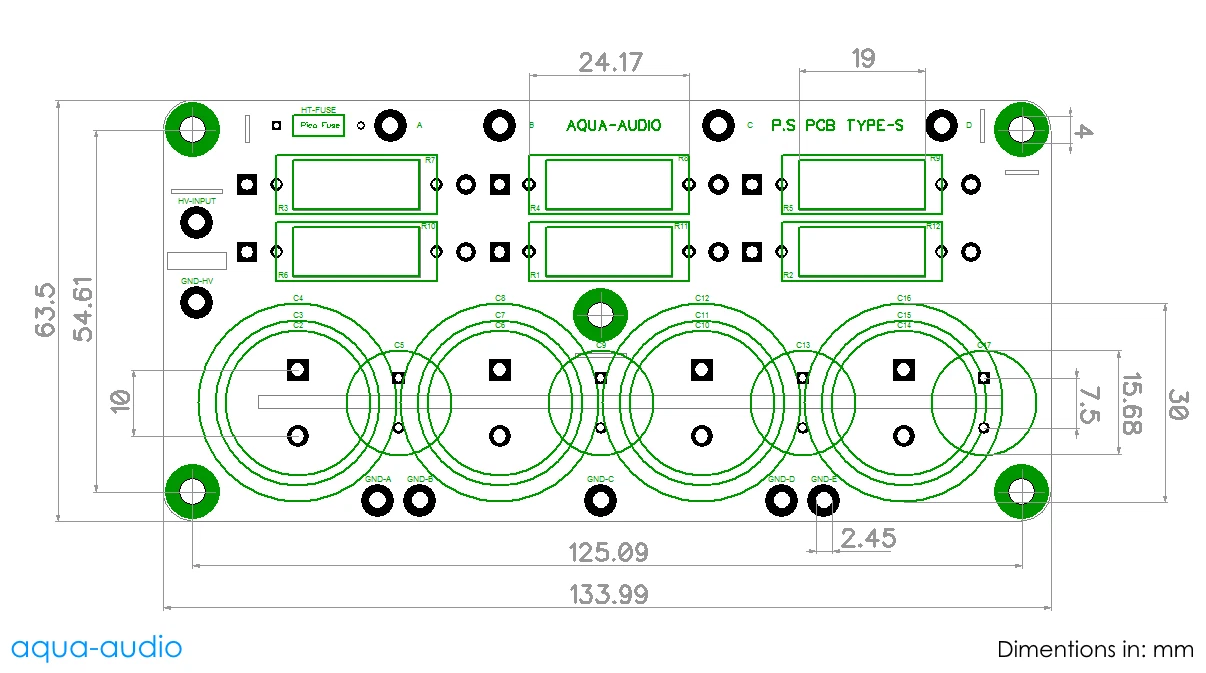

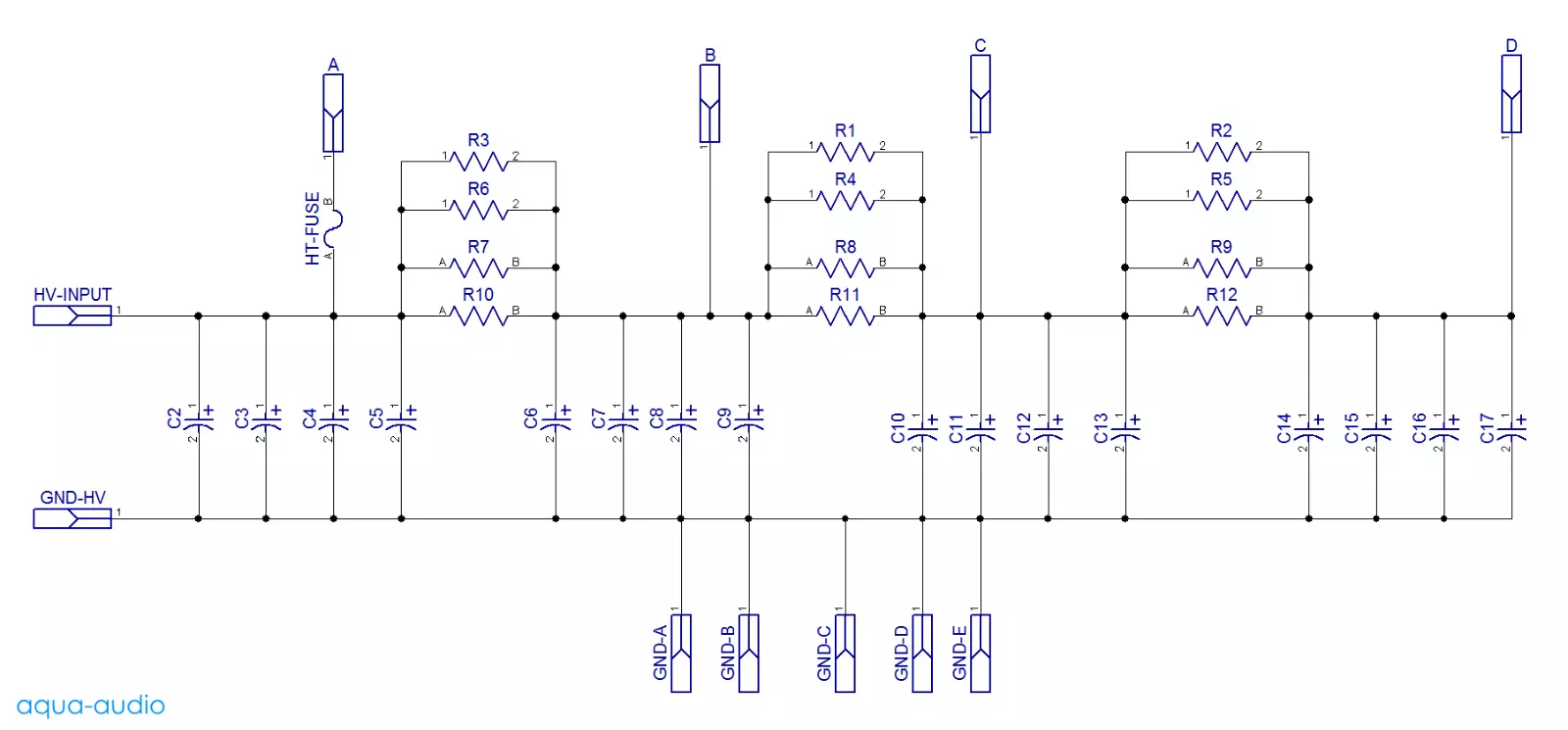

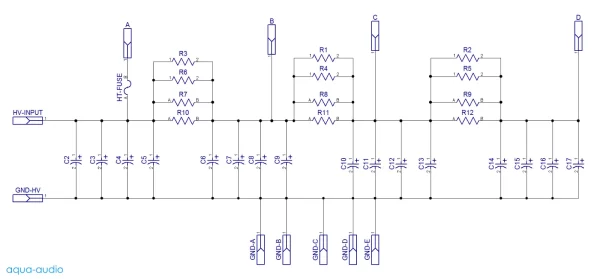

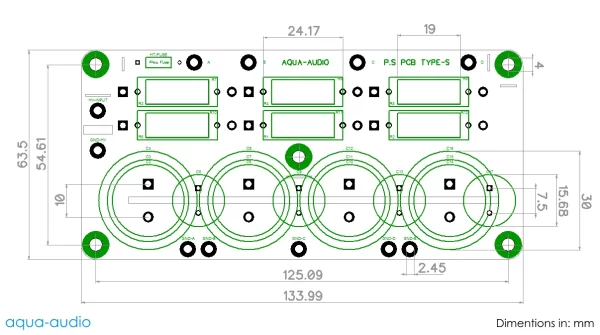

* Please see the pictures for dimensions, connection options and schematics

** The listing is only for the PCB ONLY!

All AQUA-AUDIO products are hand made.
