Multi Section Capacitor Mounting Plate And PCB
$6.00
6 in stock
Shipping rates:
To Israel: $8.00
To the rest of the world: $18.60
Description
Multi sectional caps can be very expensive, hard to find and in many cases – will not have the necessary capacitance and voltage values.
With this PCB – that is also a mounting plate, you can make your own multi sectional capacitor, and choose the right capacitance and voltage values.
All AQUA-AUDIO products are hand made.
Features
- Can accommodate Up to 4 capacitors
- Two pin spacing options: 5mm and 7.6mm for capacitors with different footprints

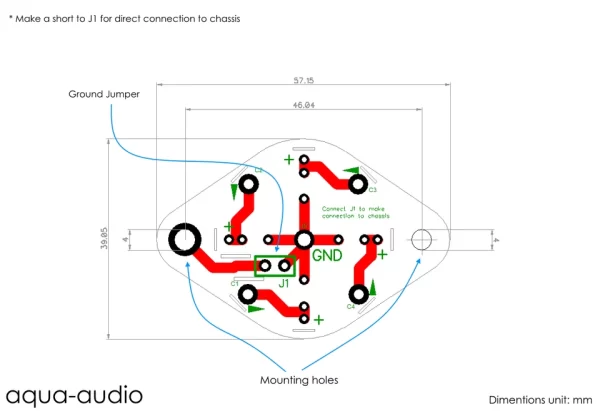

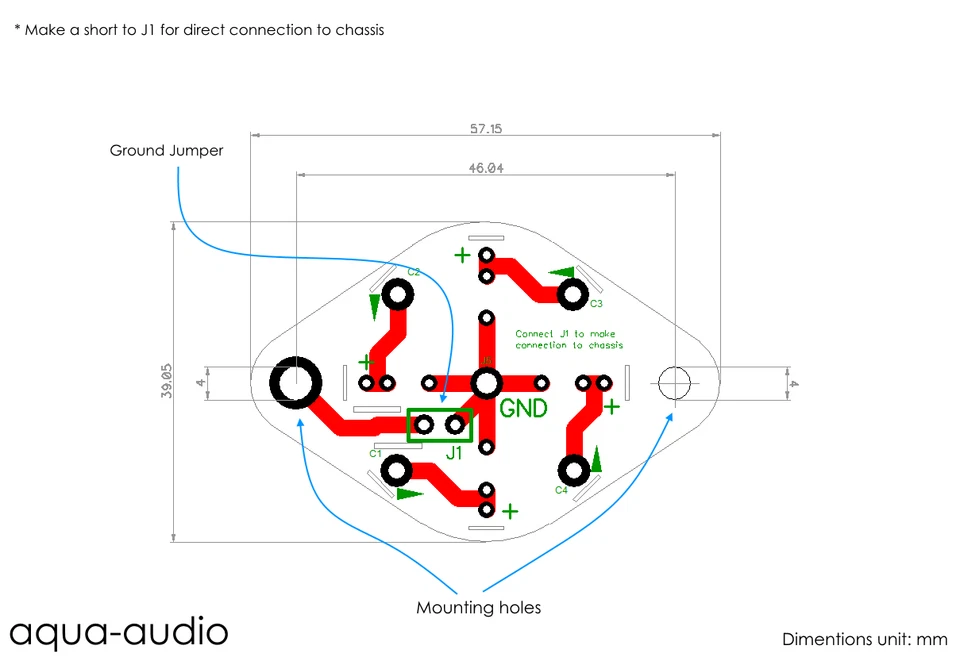

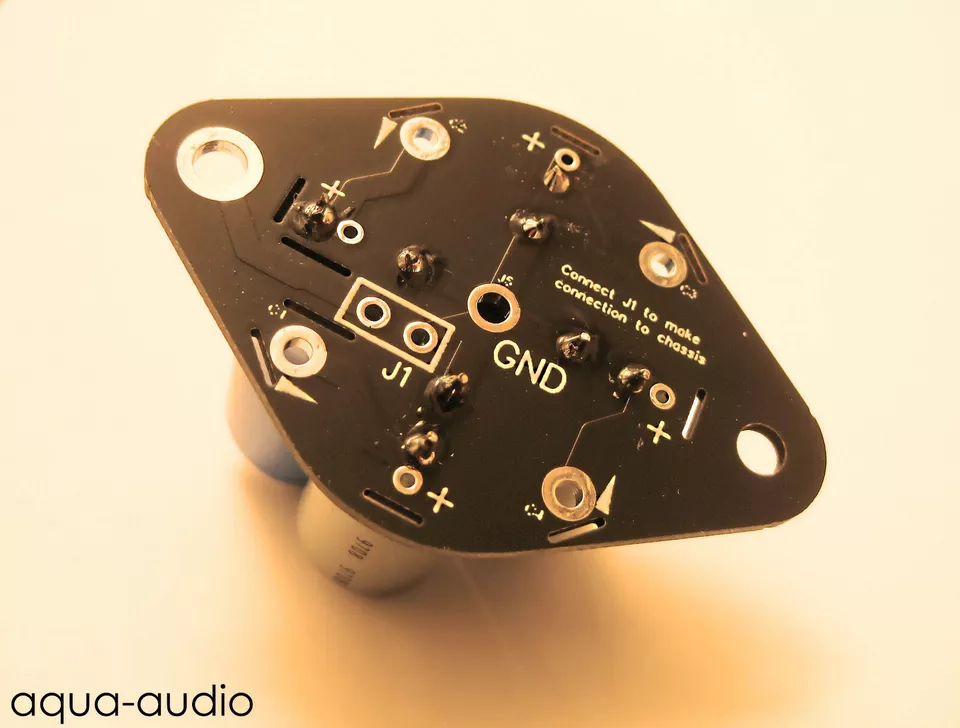

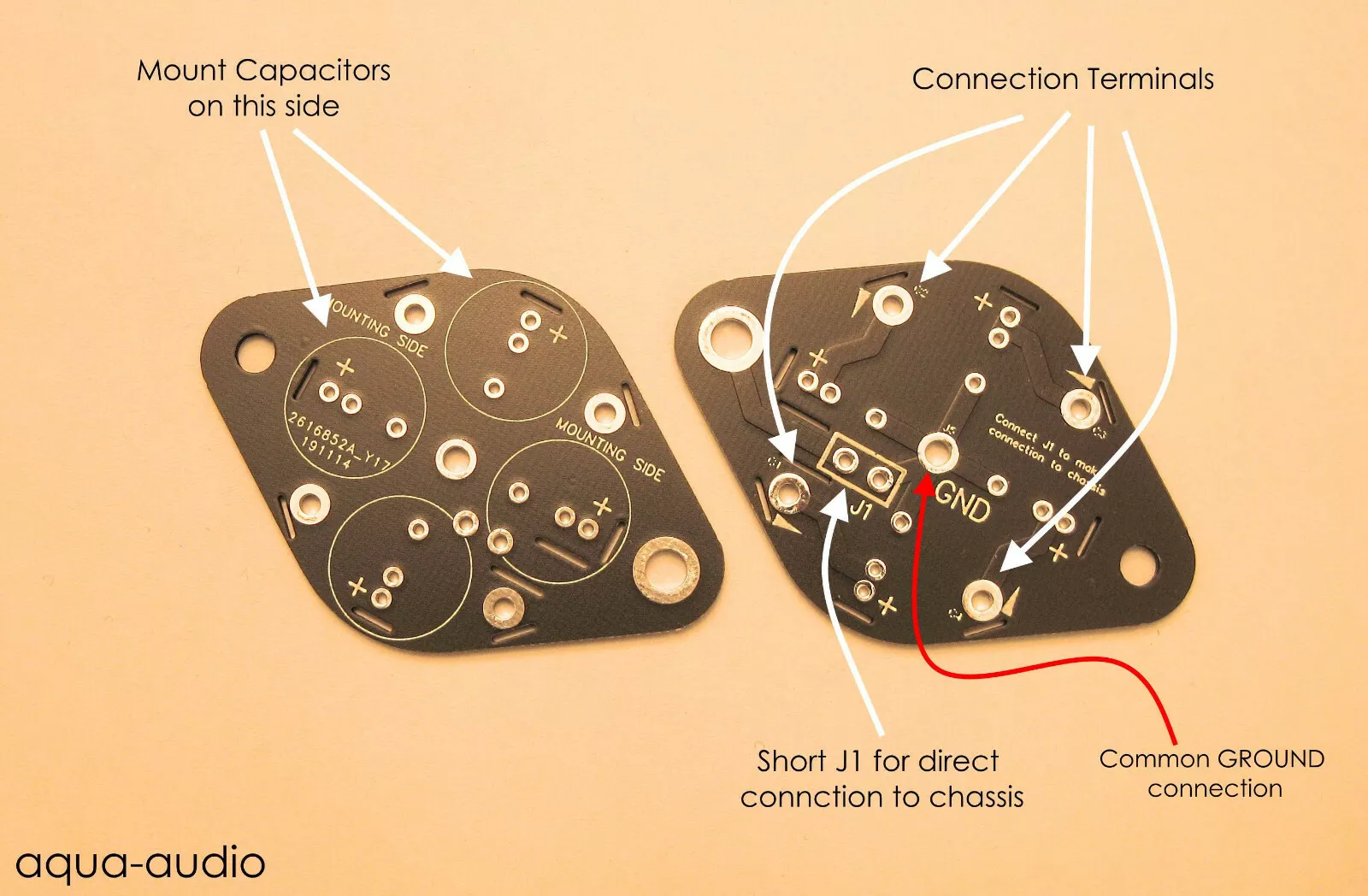

- Direct connection to chassis option (Shorting J1 will make direct connection via one of the mounting holes)
- Common ground connection
- Thick and robust PCB (1.6mm)
- Air gaps for better creepage and clearance performance.
Dimensions

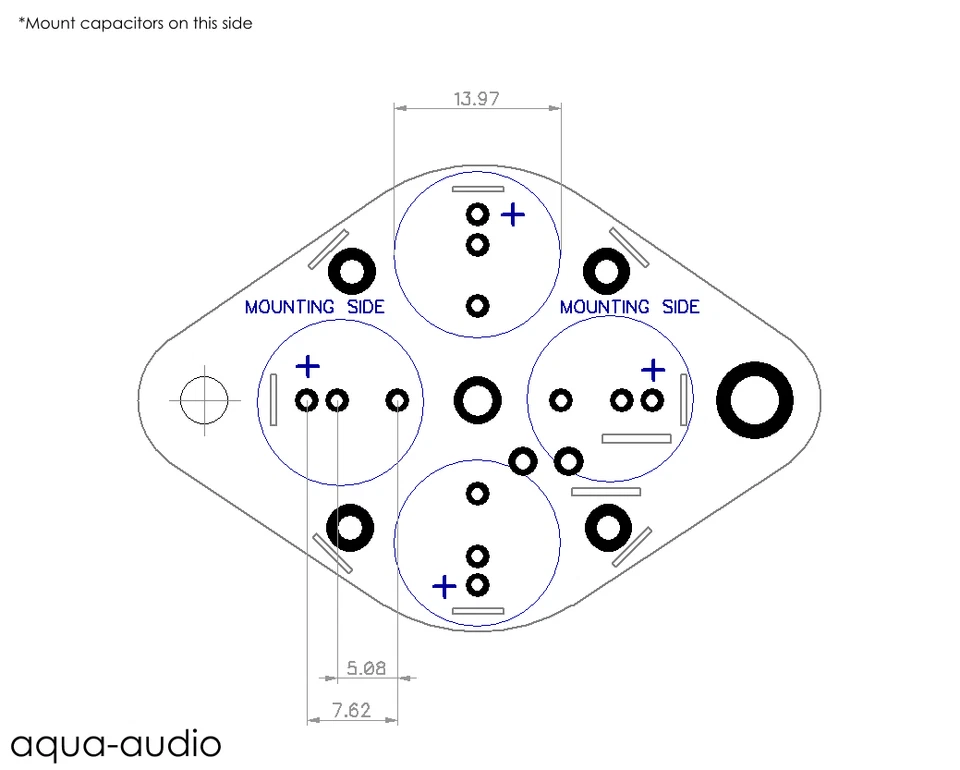

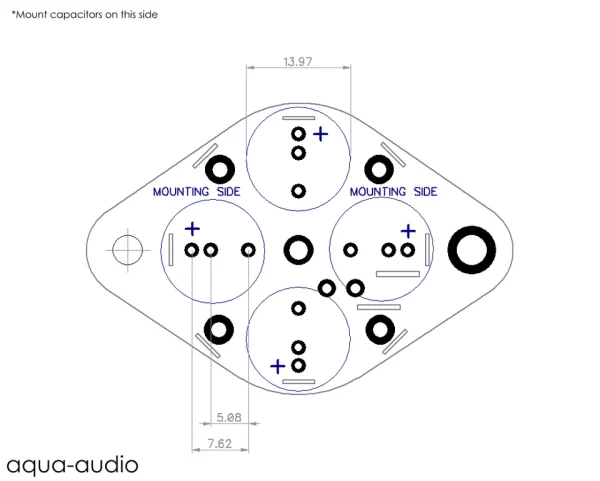

Please see the pictures for dimensions and connection options

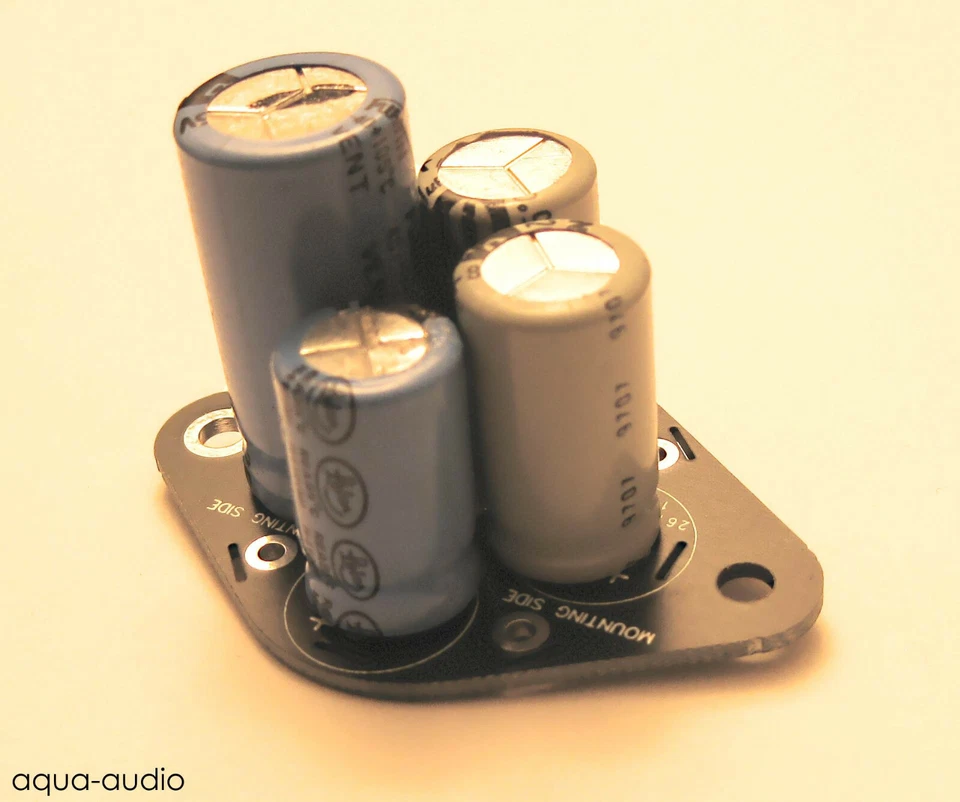

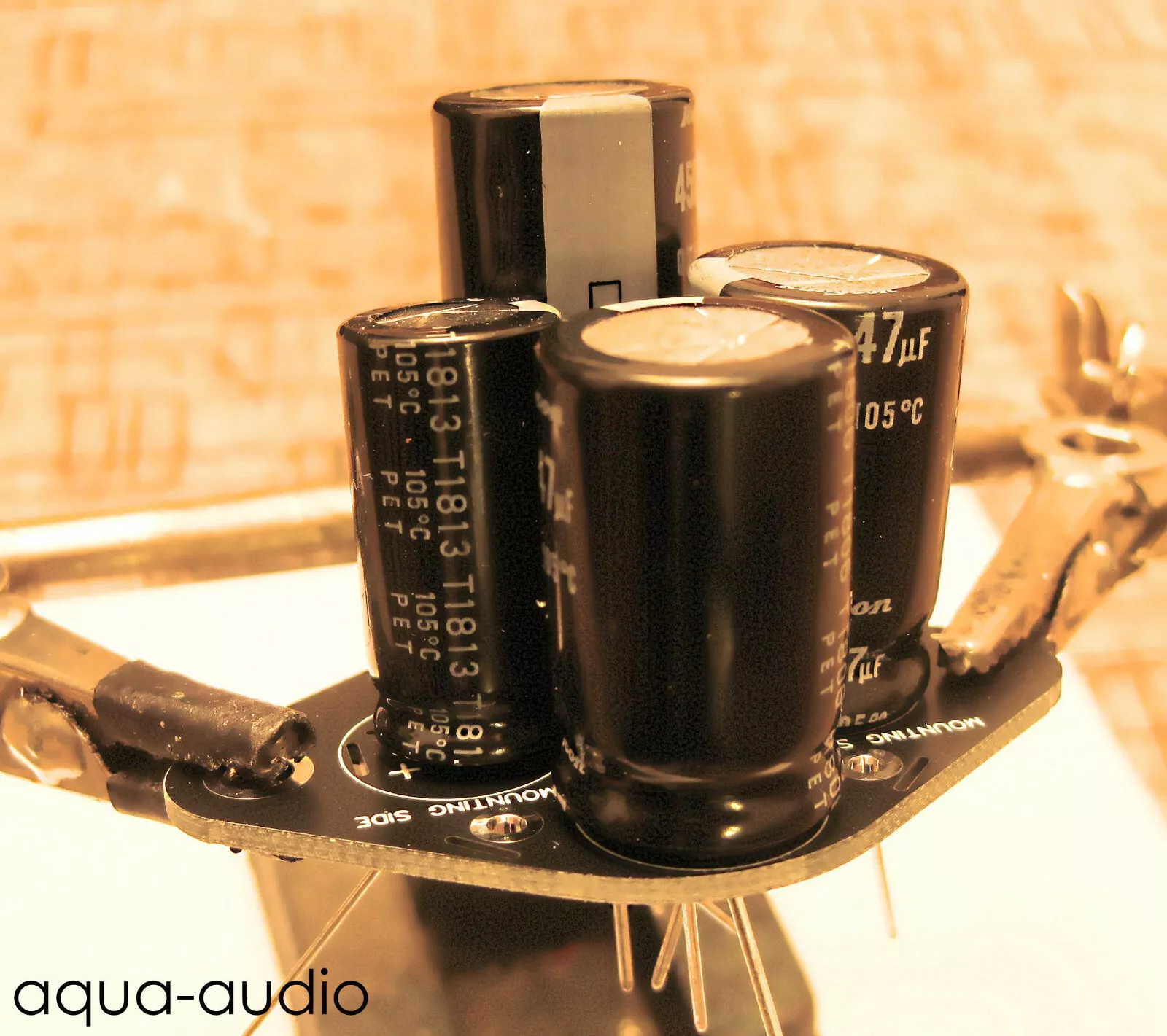

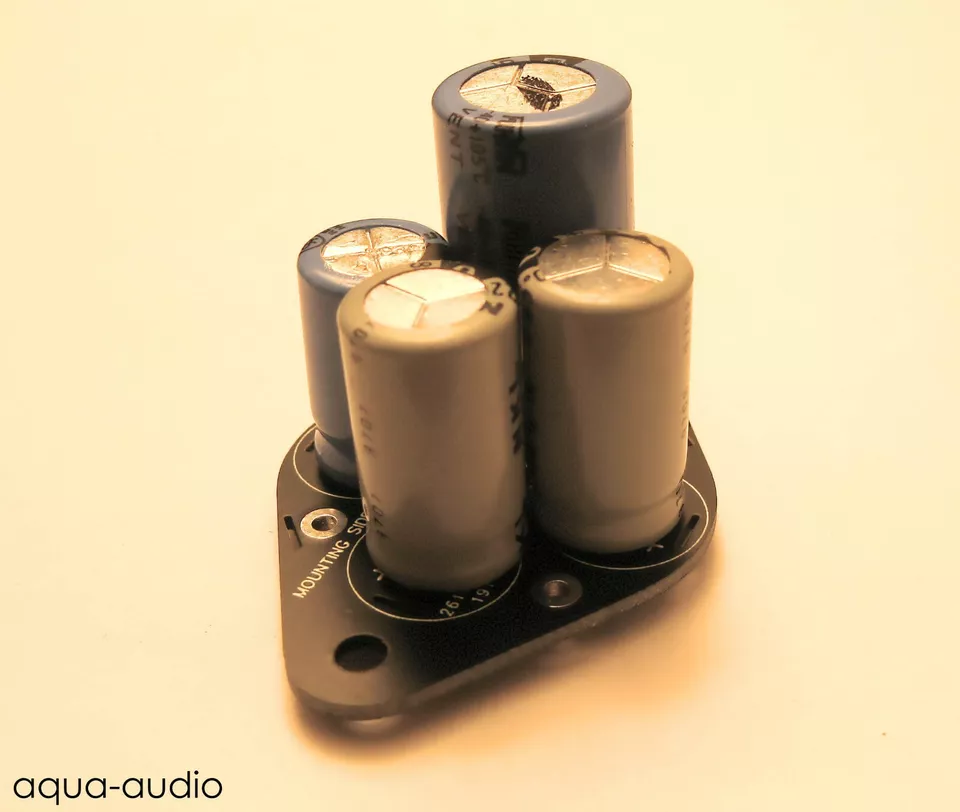

* The listing is only for the plate, the caps in the pictures are not included!
