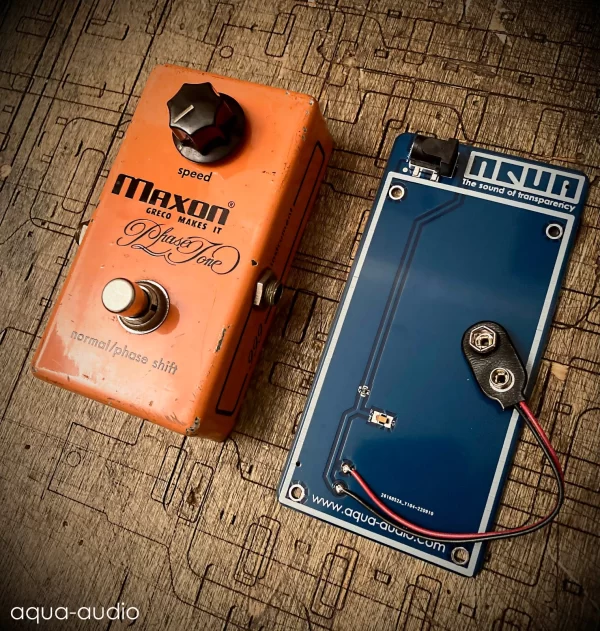

Bottom Plate With DC Jack For Maxon Phase Tone 999 Guitar Pedals

Description

I’ve designed these plates in order to enable these pedals to be used with external power supply.

All AQUA-AUDIO products are hand made.

Features:

1. This will allow the pedal to be kept in it’s original state.

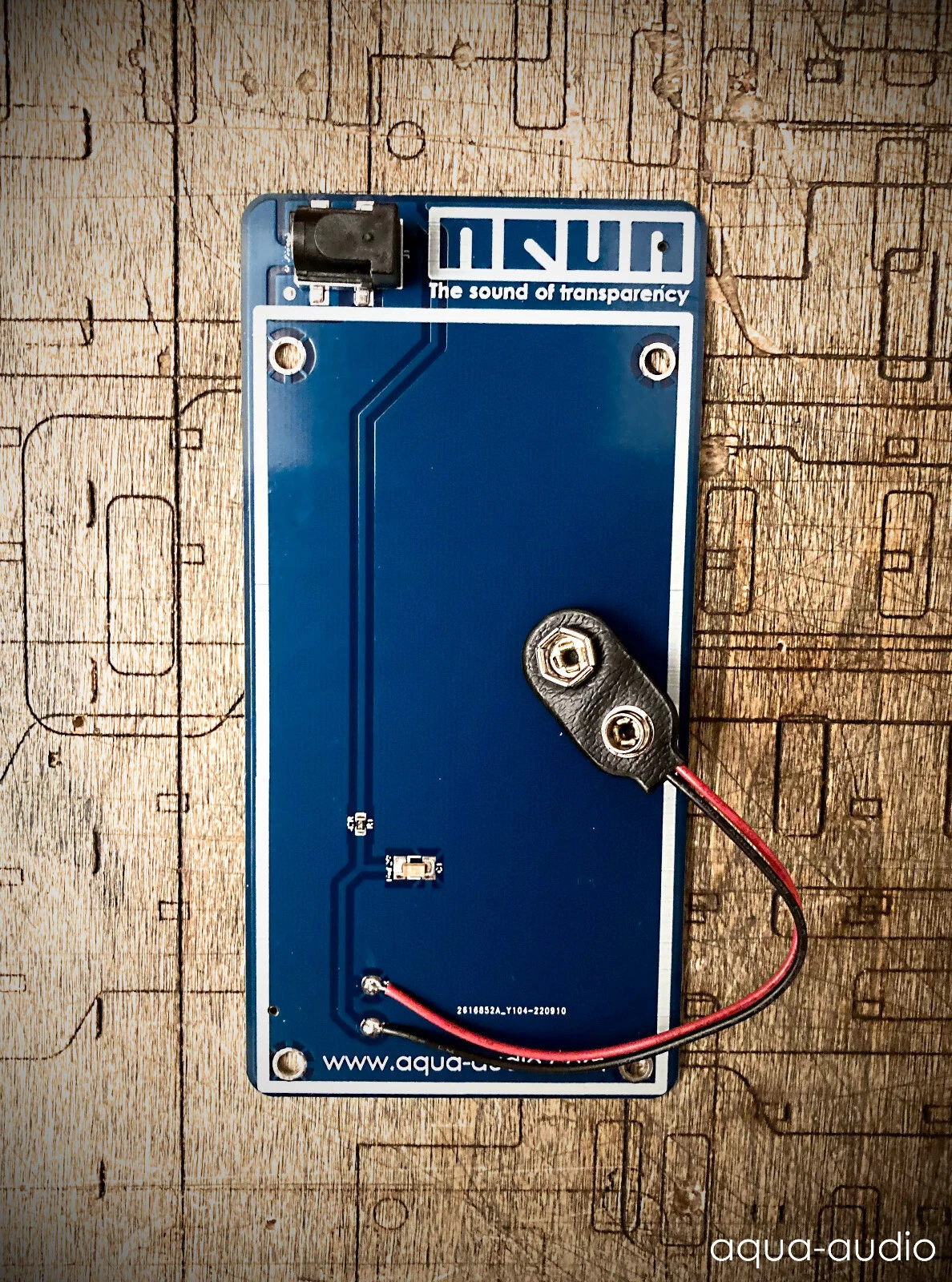

2. The plates have a battery snap to be connected to the battery snap in the pedal.
3. The plates have a built in basic power filter.

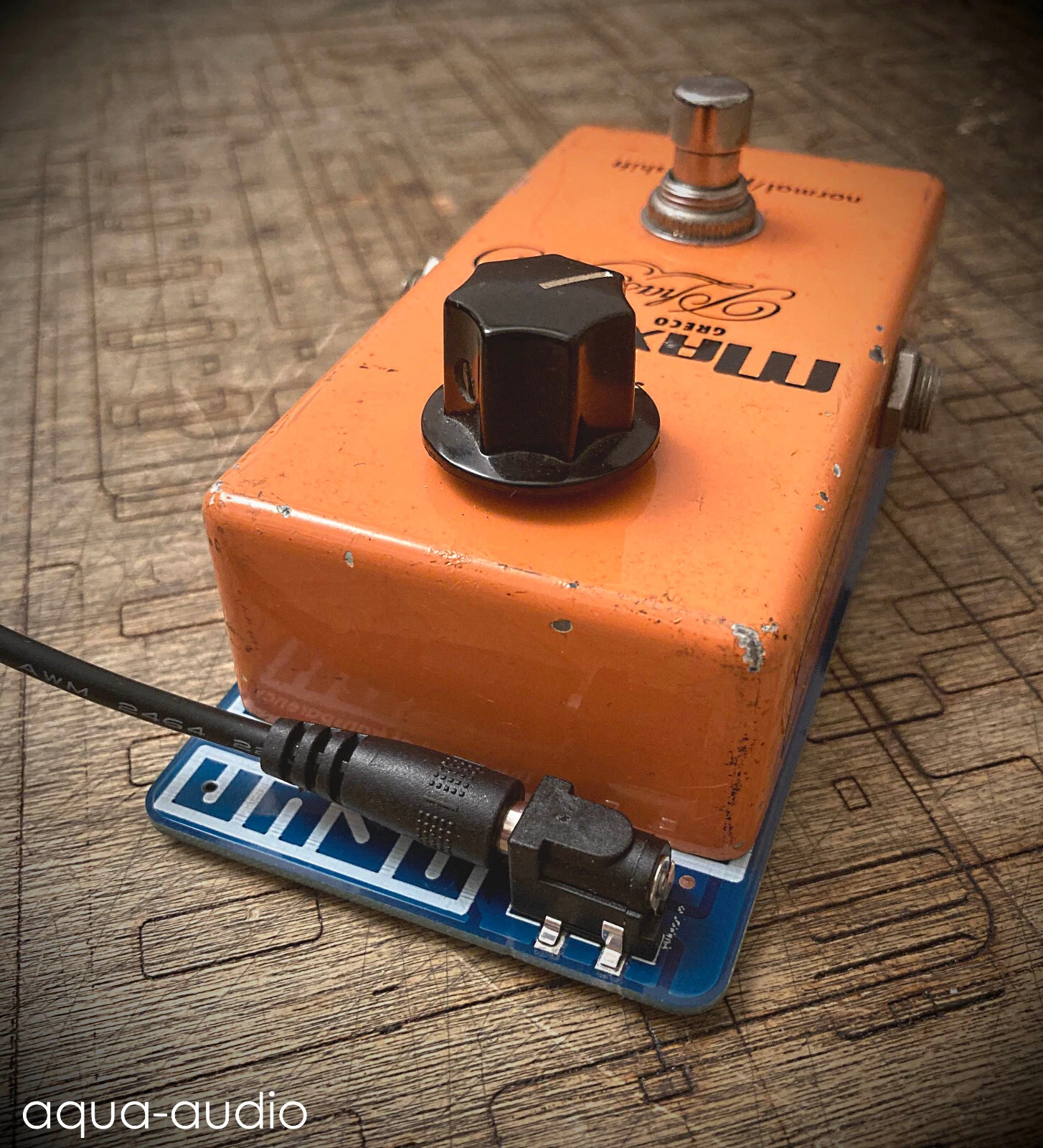

4. 2.1mm negative tip DC jack, Boss style, as most standard guitar pedals.

The original plate can be easily replaced by this plate – by following the these steps (SEE PICTURES for reference):

1. Remove the back cover, by removing the 4 screws.

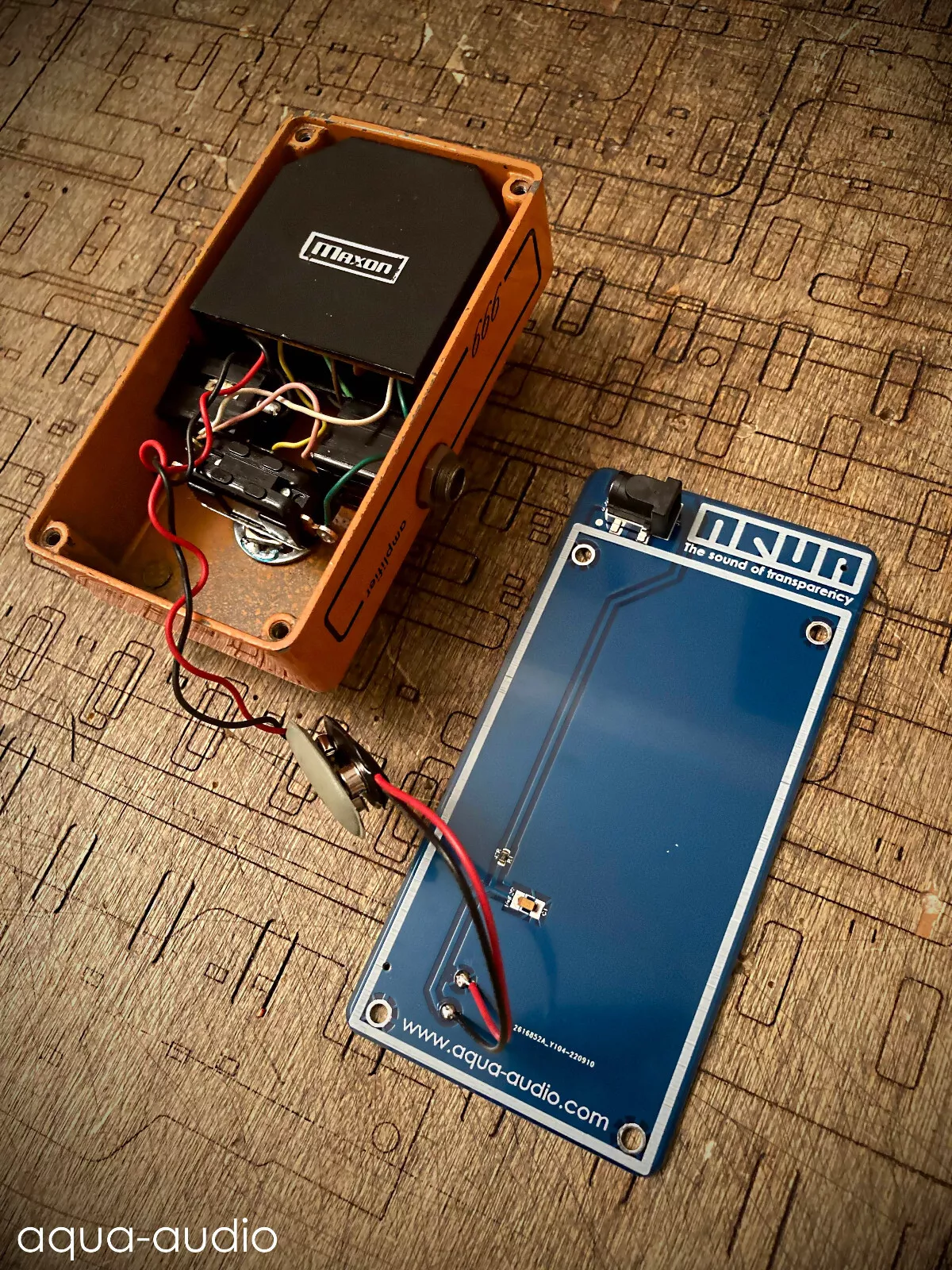

2. Connect the battery snap of the plate to the pedal’s battery snap.
3. Place the new plate carefully, make sure the wires are inside the pedal.

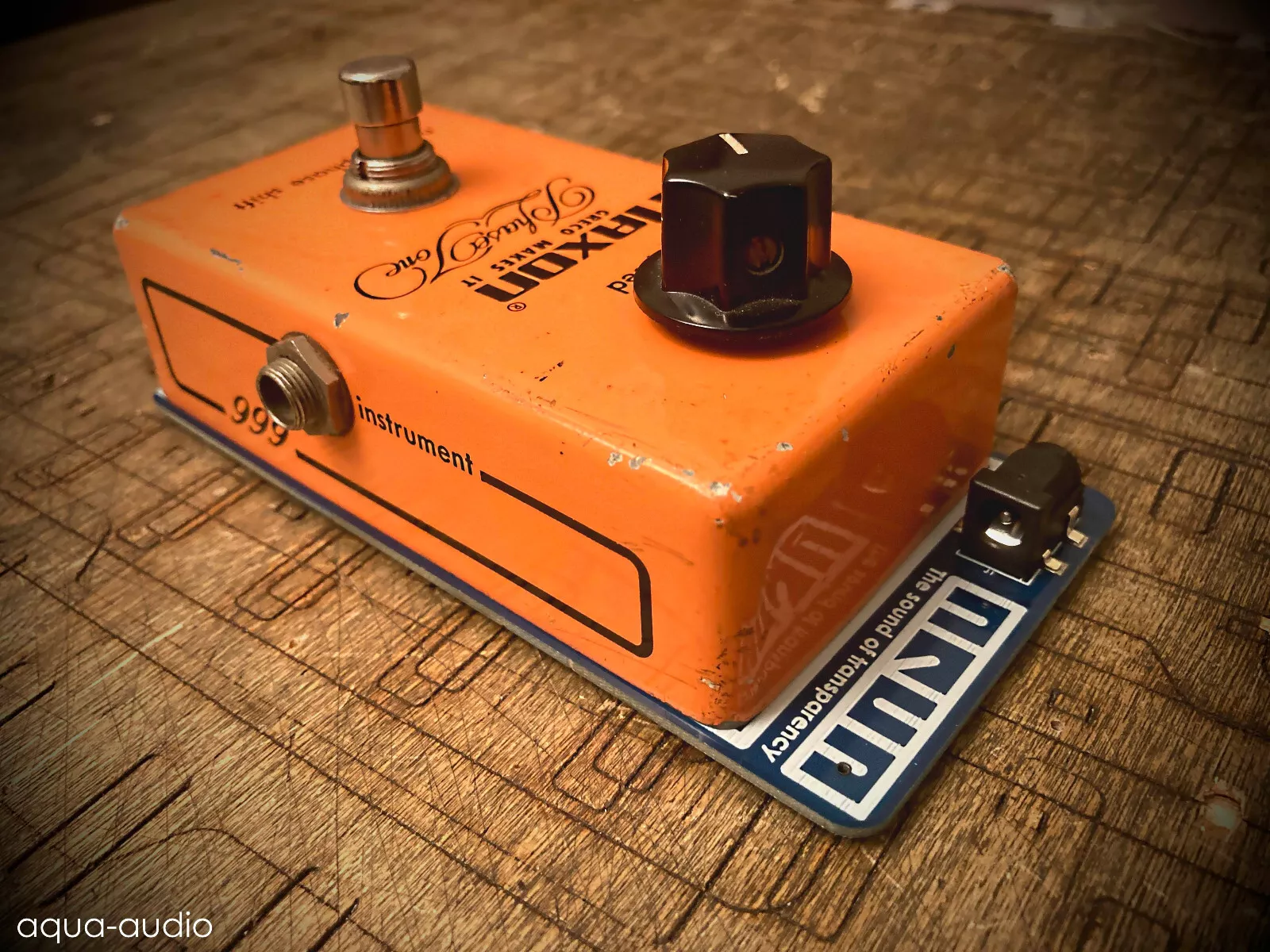

4. While holding down the plate, use the original screws to mount the new plate.

When you’ll decide to sell your pedal, just switch to the original plate.

This plate has a copper shielding on both sides, so it’s immune to EMI/RFI interference.

Check out all AQUA-AUDIO plates for Ibanez, Maxon, Boss and DOD pedals

* The listing is only for the plate, the pedal in the pictures is not included!
