A/B Switch

Description

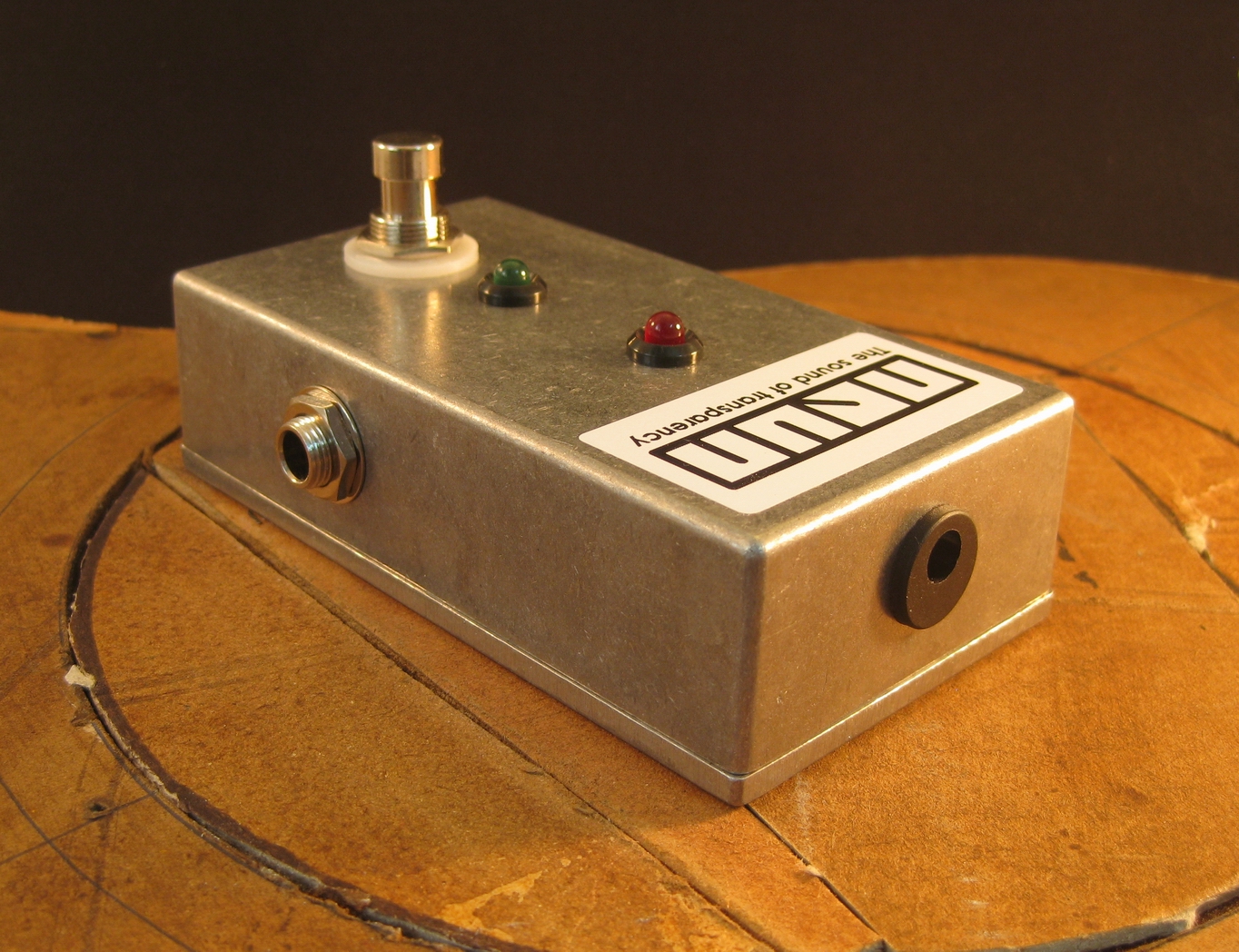

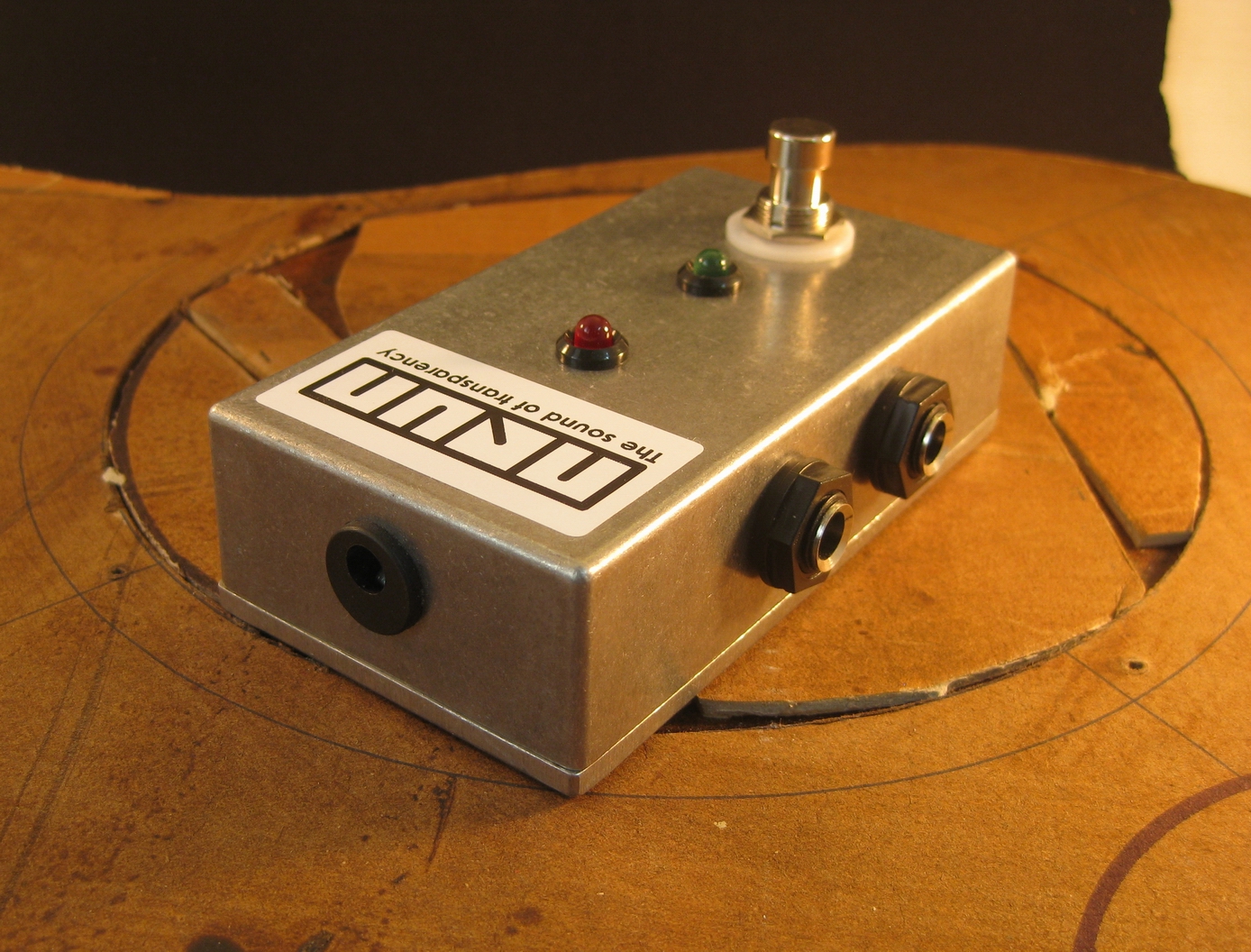

The Aqua A/B Switch can function as 1 input – 2 output or 2 input – 1 output switch. The led’s indicating which Input/Output is active.

Since this is a true bypass passive switch, it can function without the need of a power supply. Can be powered by any 9VDC (negative center) power supply (The power supply needed only for the indication led’s).

The small footprint of the switch makes it perfect for use on almost any pedal board.

All AQUA-AUDIO products are hand made.

Specifications
Neutrik jacks
Two parallel contacts to minimize resistance and increase contact reliability.
Input Voltage: 8VDC minimum.
Reverse voltage input protection.

Dimensions
Height: 5cm
Length: 11.5cm
Width: 7cm
